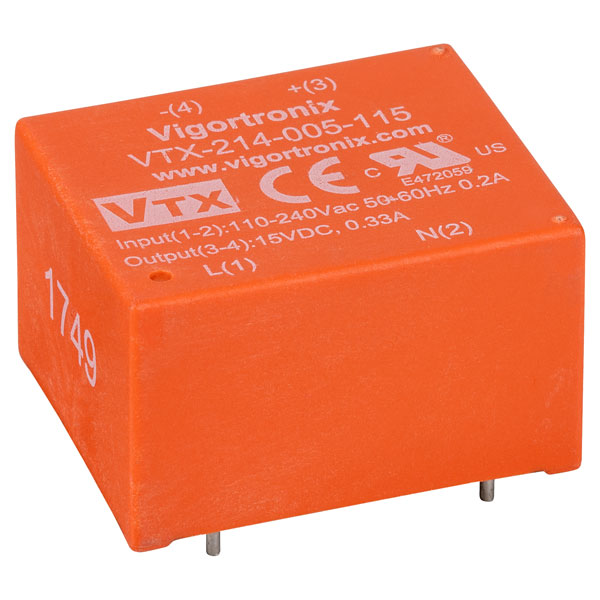

This AC-DC 4-Pin Power Supply with 5W Single Output from Vigortronix is a 15V transformer manufactured for use in applications where space is limited, thanks to the encapsulated design of the module which features a 'built-in' transformer.
Weighing just 35g, this PCB transformer is not only cost-effective, but also boasts a host of excellent features, such as the Pri/Sec full isolation, low standby power (<0.15W), -40°C to +70°C operating temperature (full load) and low ripple & noise, while offering over power, over voltage and short circuit protection.
Orange colour
2 input pins and 2 output pins
15V DC output voltage range
333mA output current
3600Vrms dielectric strength
UL94-V0 material
EN61558, EN60950, CE, UL safety
Efficiency typically 74% (40% for typical transformer)
