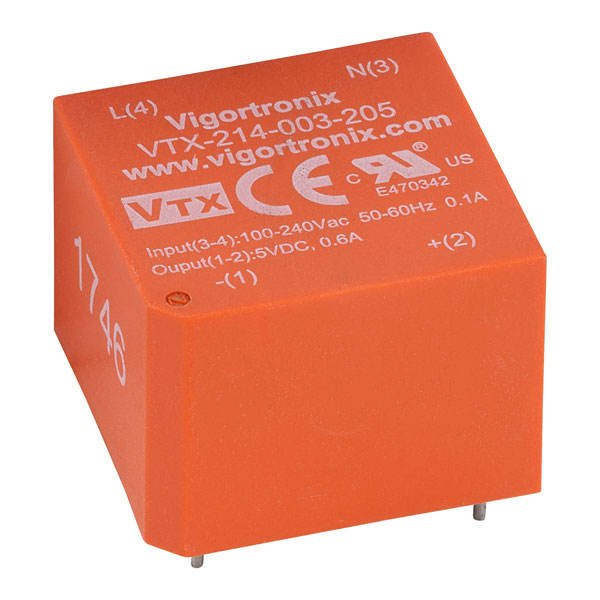

Vigortronix VTX-214-003-205 3W Miniature SMPS AC-DC Converter 5V Output

This Vigortronix AC-DC 3W single output miniature switched mode power supply (SMPS) is designed for applications where space is limited, thanks to the encapsulated design of the module which boasts over power, over current and short circuit protection.

This very small 17g PCB mounted SMPS is not only cost-effective, but also boasts a host of features, such as 3600V_rms primary to secondary isolation, low standby power (<0.3W), -25°C to +70°C operating temperature (full load), low ripple and noise and >74% efficiency.

• Output 5V DC
• Input 90 to 264V AC, 47 to 63Hz
• Ultra-compact size
• Single 3W regulated output (5-pin)
• Low standby power <0.3W
• Encapsulated design
• Materials UL94-V0
• Safety rated EN61558, EN60950, CE, UL
• Dimensions 24 x 23 x 19mm
