Vigortronix VTX-211-120-148 120W DIN Rail Power Supply 90-264V AC - 48V DC

Vigortronix
Standard range
Order Code:

88-0142

Brand: Vigortronix MPN: VTX-211-120-148
Qty Unit Price (Ex VAT)
1+ £20.71
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched same dayContact us for additional stock

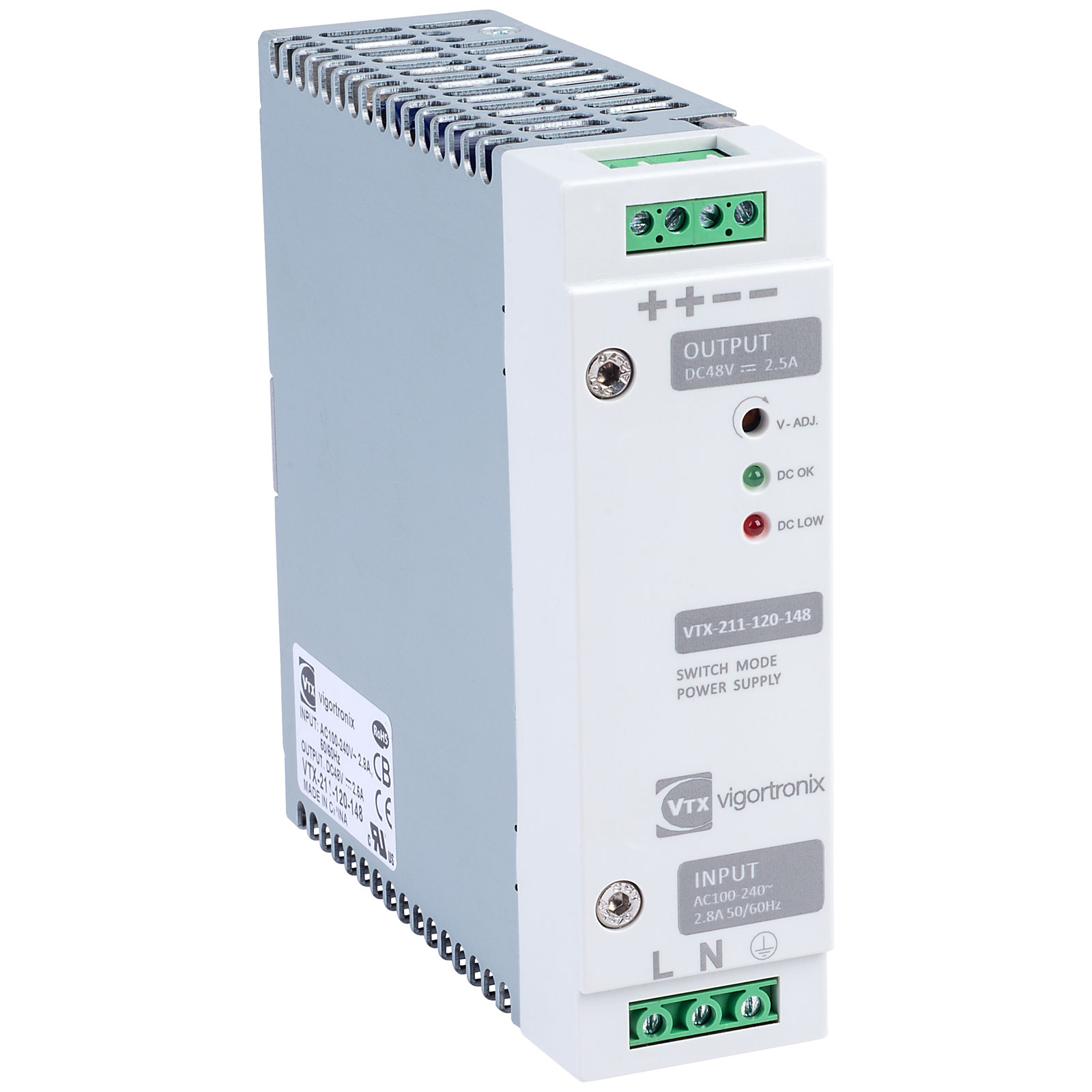

This 48V 120W DIN rail mounted power supply features low standby power and a regulated single output. A wide input voltage range makes this PSU suitable for a wide variety of applications.

Suitable applications for this PSU include: process control, factory automation, traffic and transport systems, industrial applications, etc.


  • Switch mode power supply
  • Input voltage range 90 to 264V AC
  • Regulated single output
  • Low standby power
  • 100% Burn-in test
  • LED Indicator DC On, DC Low
  • 3kV Isolation voltage
  • Rating UL 94V-0
Dimensions (L x W x H) 130 x 40 x 125mm
Number of Outputs 1
Open Frame/DIN Rail DIN rail
Output Current Max. 2.5A
Output Current Min. 0A
Output Voltage Max. 55V
Output Voltage Min. 47V
Power Rating 120W
Supply Voltage Range 90 to 264V
Temperature Range -25 to +70°C
