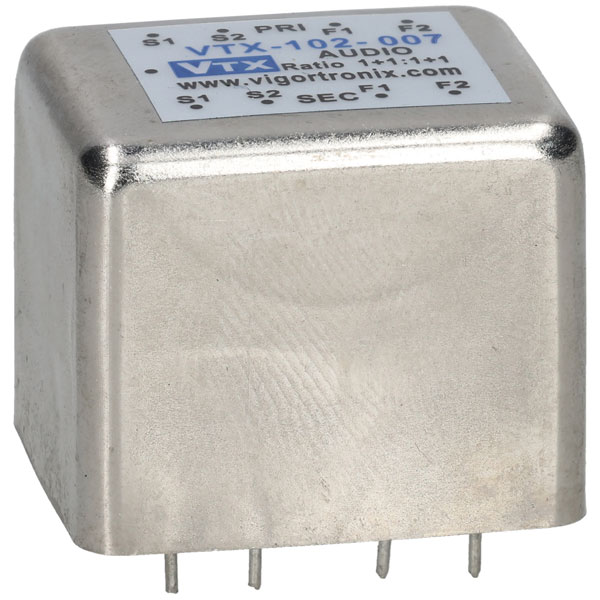

Vigortronix VTX-102-007 Audio Transformer, Canned, 1:1, 600 Ohm, 600 Ohm, 35 Khz

High quality PCB mounting audio transformer with Mu-metal can from Vigortronix aimed at the professional audio market. The VTX-102-0xx series offers good band width and low distortion characteristics. These transformers are bidirectional so that an input winding can become the output winding and an output can become an input. As a result, it can provide a gain in signal level when used in one direction or a loss when used in reverse.

• High quality audio transformers
• Encapsulated PCB mounting
• MU-metal can with Lid to minimise external noise
• Less than 1% T.H.D
• 30Hz ~ 35KHz frequency range
• ULV0-94 rated materials
• RoHS Compliant

Type	PCB audio transformer
Mounting Type	PCB
Frequency Range	30 to 35000Hz
Primary Impedance	600O
Turn Ratio	1:1
Weight	61g
