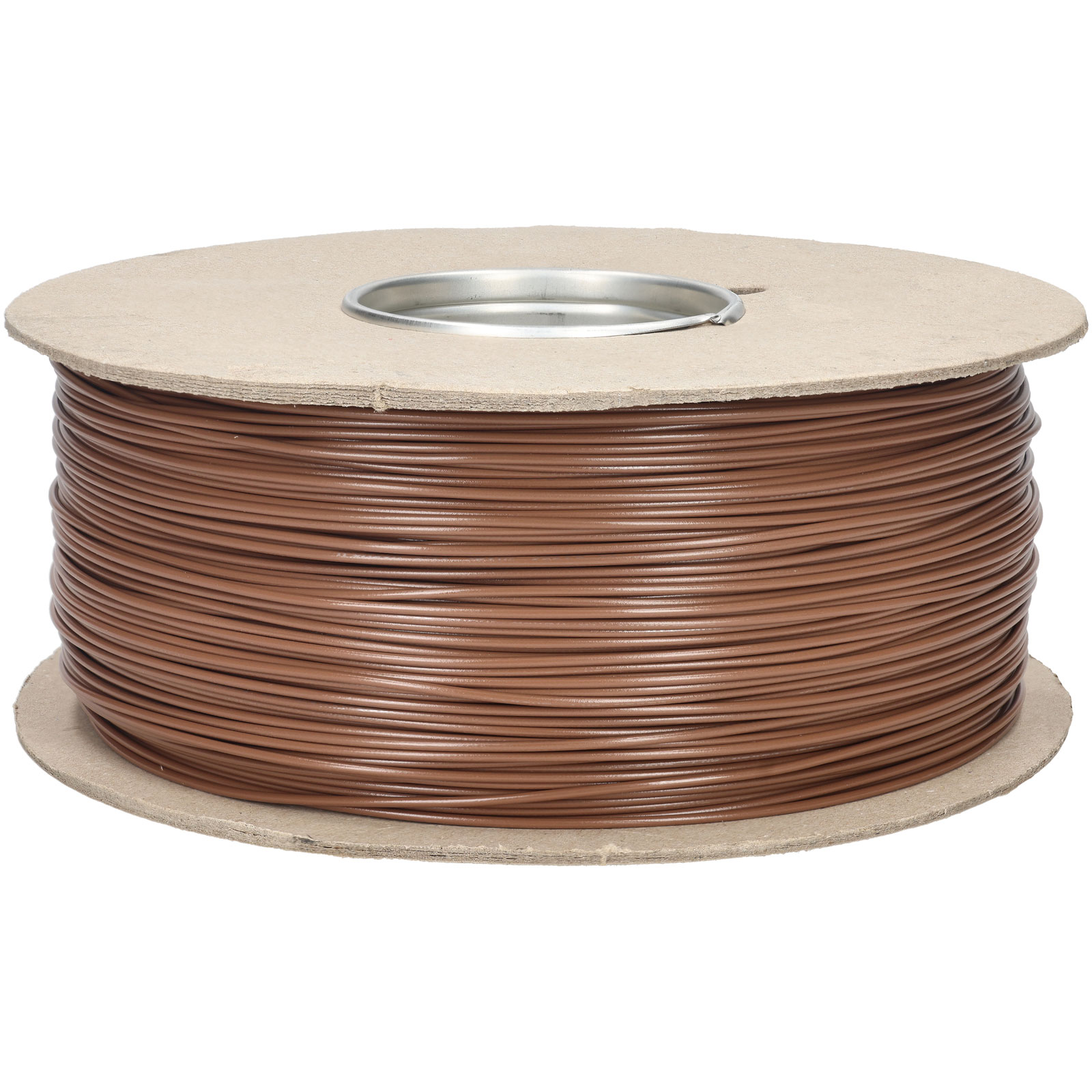

Unistrand UNI6B108BR500 1/0.8 mm Brown 0.5 mm 20AWG H05V2-U Hook Up Wire 500M

UniStrand
Standard range
Order Code:

10-0974

Brand: UniStrand MPN: UNI6B108BR500
Qty Unit Price (Ex VAT)
1+ £97.80
5+ £89.40
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched same dayAdditional quantity lead time 10 weeks

A high quality stranded wire, these cables have been designed with the highest quality and versatility in mind and their continuous temperature rating of 85°C makes the wire suitable for a range of applications including lighting. Perfect in situations where ozone, corona discharge, radiation, heat, weathering, or the normally adverse effects of a wide range of oils, solvents, etc, may be encountered.
  • Excellent quality bare copper
  • Highly reliable PVC insulation
  • Single Solid Conductor
  • RoHS compliant
    • Sheath Colour Brown
    Conductor Cross Sectional Area 0.5mm²
    Conductor AWG 20
    Conductor Stranding 1/0.80mm
    Insulation material HRPVC (Type TI3 to BS EN 50363)
    Standards BS EN 50525-2-31 Section 5.3 Table B.3
    Insulation Wall Thickness 0.8mm
    Packaging Reel
    Voltage Rating 300/500V
    Minimum Operating Temperature -15°C
    Maximum Operating Temperature +105°C
    Conductor Material Plain Annealed Copper
