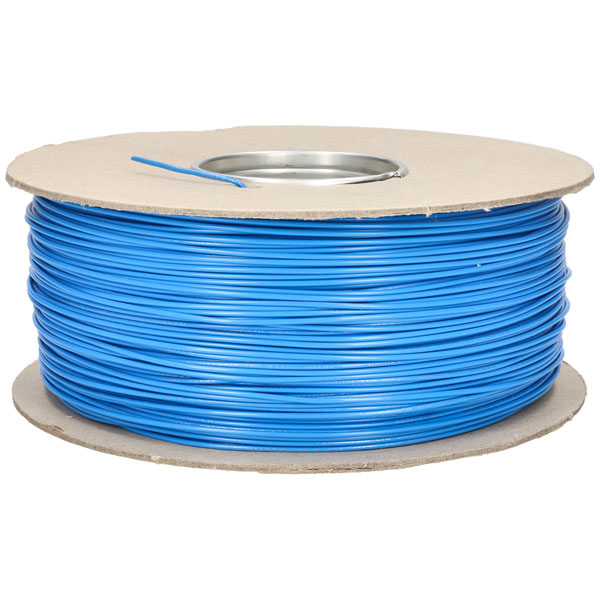

Unistrand UNI6B108BL500 1/0.8 mm Blue 0.5 mm 20AWG H05V2-U Hook Up Wire 500M

UniStrand
Order Code:

10-0972

Brand: UniStrand MPN: UNI6B108BL500
Qty Unit Price (Ex VAT)
1+ £103.38
5+ £89.90
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched same dayAdditional quantity lead time 10 weeks

These cables have been designed with the highest quality and versatility in mind and their continuous temperature rating of 85°C makes the wire suitable for a range of applications including lighting. Perfect in situations where ozone, corona discharge, radiation, heat, weathering, or the normally adverse effects of a wide range of oils, solvents, etc, may be encountered.
  • Excellent quality bare copper
  • Highly reliable PVC insulation
  • Single Solid Conductor
  • RoHS compliant
Colour Blue
Conductor Stranding 1/0.80mm
Insulation Material HRPVC (Type TI3 to BS EN 50363)
Conductor AWG 20
Conductor Cross-section 0.5mm²
Conductor Material Plain Annealed Copper
Insulation Wall Thickness 0.8mm
Maximum Operating Temperature +105°C
Minimum Operating Temperature -15°C
Packaging Reel
Standards BS EN 50525-2-31 Section 5.3 Table B.3
Voltage Rating 300/500V
