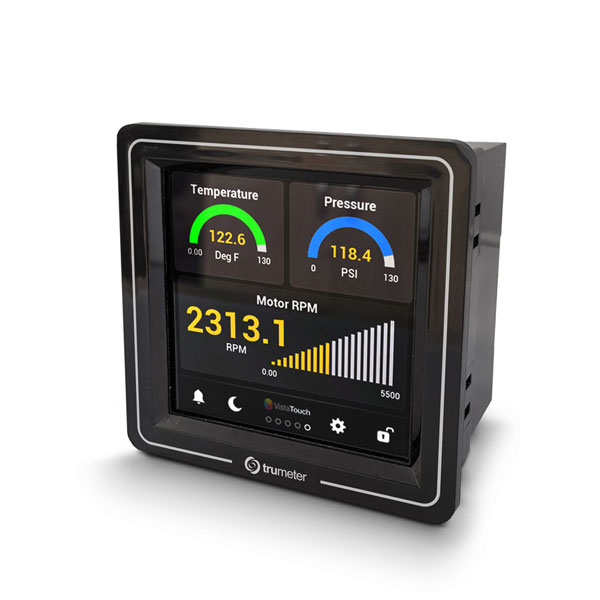

The VT-PROC-HV Vista Touch Process Meter is an IoT-ready HD touch screen panel meter for use with 100-277 VAC power supplies. Designed for process applications, it supports up to eight sensors (4x 4–20mA, 4x 0–10V) with 0.1% accuracy. It features programmable math functions and advanced non-linear scaling for precise calculations and compensation for complex signals.
The VT-PROC-HV Vista Touch Process Meter (HV) is engineered for demanding process applications, consolidating multiple signals into a single, powerful monitoring hub. Supporting up to eight sensors (four 4–20mA and four 0–10V), it includes four programmable math functions and advanced non-linear scaling for precise custom calculations and compensation of complex sensor behaviors.
With 0.1% accuracy across the full input range, this high-voltage model operates on 100–277VAC supplies and includes Trumeter Cloud access, enabling secure remote monitoring, data logging, and instant alerts via email or optional SMS.
The 70 x 70mm HD color display with touchscreen control delivers intuitive setup, user-defined scales, custom alarm messages, and advanced notifications. Pre-configured gauge designs provide clear, real-time visualization tailored to your application.
With Modbus® RTU and TCP and two form C relays for communications, plus a USB port for easy configuration cloning and local datalogging via flash drive. With industry-standard ¼ DIN mounting and modular quick-connect terminals, the Vista Touch Process Meter can be easily integrated into equipment and control panels.
- Supports up to 8 sensors (4x 4-20mA and 4x 0-10V)
- Programmable math functions
- Advanced non-linear scaling
- Accuracy: 0.1%
- Local data logging via USB
- 65K full colour 70 x 70mm graphics display
- Intuitive touchscreen
- User programmable scale, custom alarms and messages
- Fully configurable from the front panel
- Load and save configuration data to a USB flash drive
- Free access to the IoT Trumeter Cloud, remote monitoring texts, emails and alarm notifications
- Modbus® RTU and TCP
- ¼ DIN industry standard mounting
- Ethernet and RS485 as standard
- Modular pluggable quick connect/disconnect connectors
| Display Type |
Hd Touch Screen |
| Measuring Type |
Process |
| Measuring Range |
0-20mA (current), 0-10V (voltage) |
| IP Rating |
IP65 (front) |
| Voltage - Supply |
100-277V AC |
| Meter Function |
Process meter |
| Operating Temperature |
-20 to +60°C |
| Screen size diagonal (inches) |
4.1in |
