TruConnect 213923 3.5mm Low Profile 90 Degree 12 Way Terminal Block

MPN: 213923
Brand: TruConnect
EAN-13: 5053556020881
Order Code: 21-3923
Country of Origin: China

RoHS Compliant
Free UK shipping available

Quickly find another product in this range by No. of Ways:

View Full Product Range (11)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£1.81
5+	£1.40
10+	£1.18
25+	£1.03
50+	£0.905
100+	£0.810

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 500 in stockAdditional quantity lead time 5 months

Product Details
Product Range
Data Sheets
Quick Quote

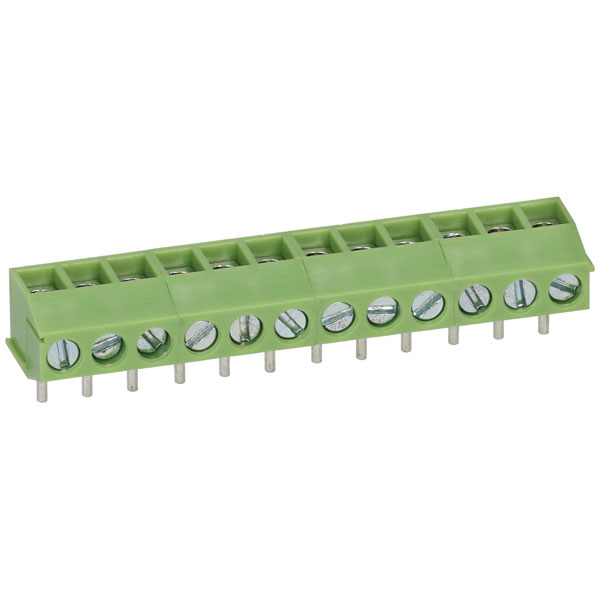

A horizontal mounting, moulded wire protector terminal block with 12 poles, 3.5mm pitch.

Low profile design
Horizontal orientation
Wire protector clamp style
Slotted screws
24 to 18AWG
Rated voltage: 300V
Rated current: 7A
Moulded housing in green flame retardant PA66
Screws: zinc plated steel
Pin header: tin plated brass
Stainless steel wire guard
UL approved

Pitch	3.5mm
No. of Ways	12
Mounting Type	Through Hole
Mounting Direction	Horizontal
Wire Gauge (AWG)	26 - 18 AWGmm²
Wire Termination	Screw, Wire Protector
Colour	Green
Current Rating	7A
No. of Levels	1
Voltage Rating	300V
