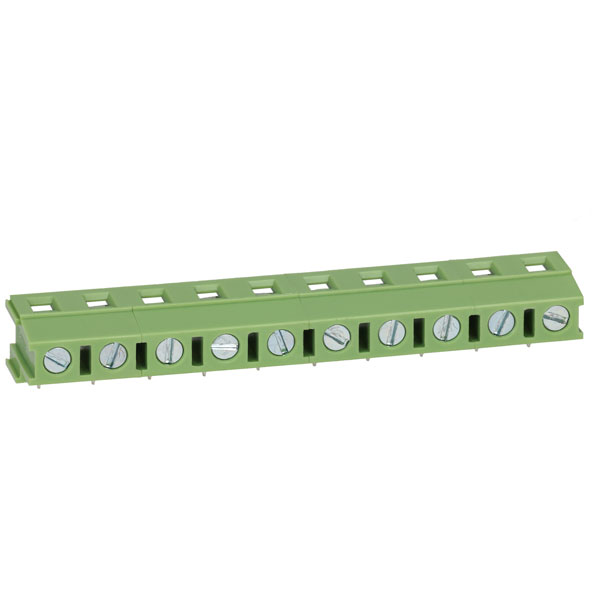

TruConnect 212969 7.5mm Standard Profile 90 Degree 10 Way Terminal Block

MPN: 212969
Brand: TruConnect
EAN-13: 5053556022052
Order Code: 21-2969
Country of Origin: China

RoHS Compliant
Free UK shipping available

Quickly find another product in this range by No. of Ways:

View Full Product Range (11)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£1.88
5+	£1.46
10+	£1.24
25+	£1.07
50+	£0.942
100+	£0.844

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 500 in stockAdditional quantity lead time 5 months

Product Details
Product Range
Data Sheets
Quick Quote

Horizontal mounting, moulded rising clamp terminal block with 10 poles, 7.5mm pitch.

Standard profile design
Interlocking (2-way and 3-way)
Horizontal orientation
Rising clamp
Slotted screws
24 to 12AWG (2.5mm²)
Rated voltage: 300V
Rated current: 15A
Moulded housing in green flame retardant PA66
Screws: M2.5, zinc plated steel
Pin header: tin plated brass
UL approved

Pitch	7.5mm
No. of Ways	10
Mounting Type	Through Hole
Mounting Direction	Horizontal
Wire Gauge (AWG)	24 to 12AWG
Wire Termination	Rising Clamp
Colour	Green
Current Rating	15A
No. of Levels	1
Voltage Rating	300V
