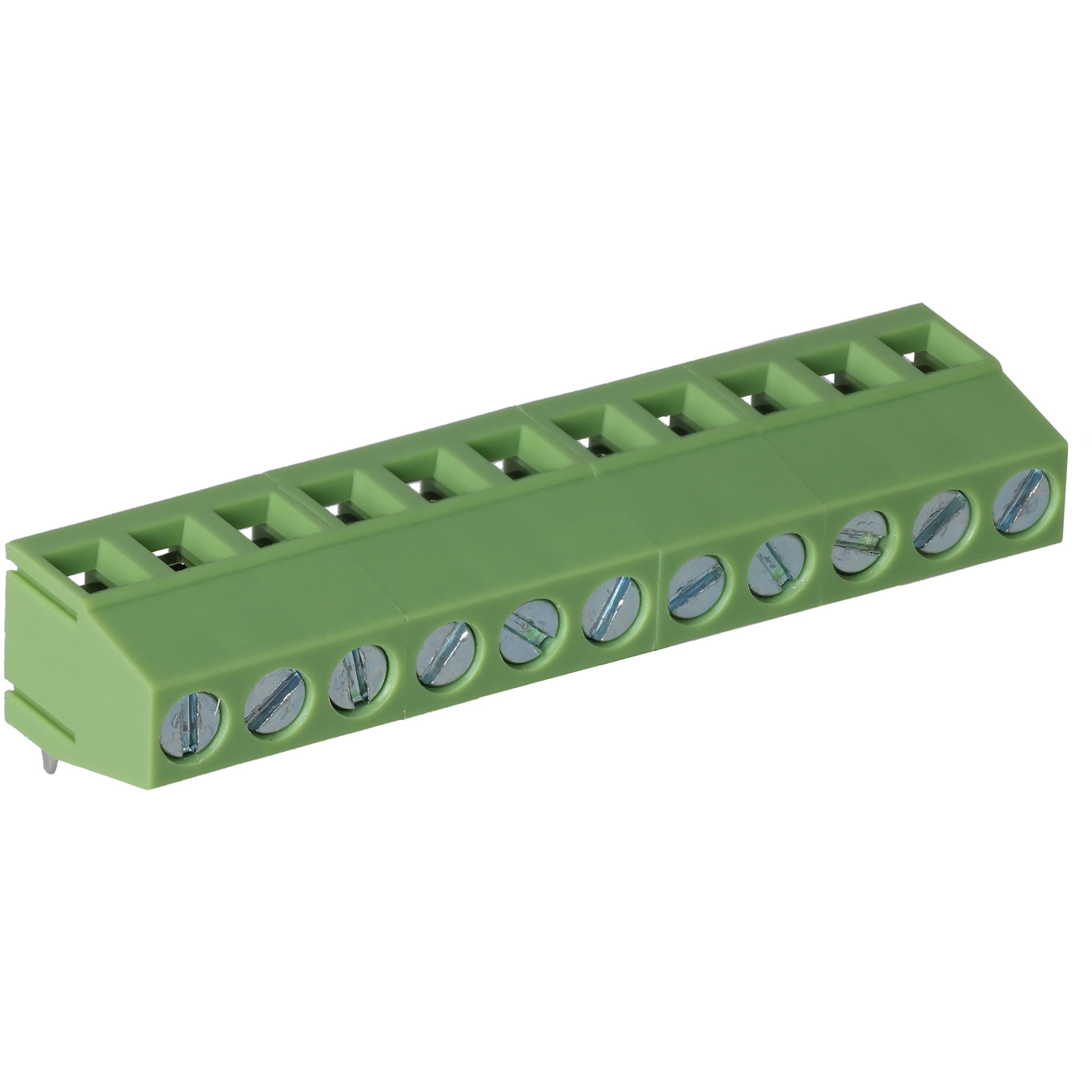

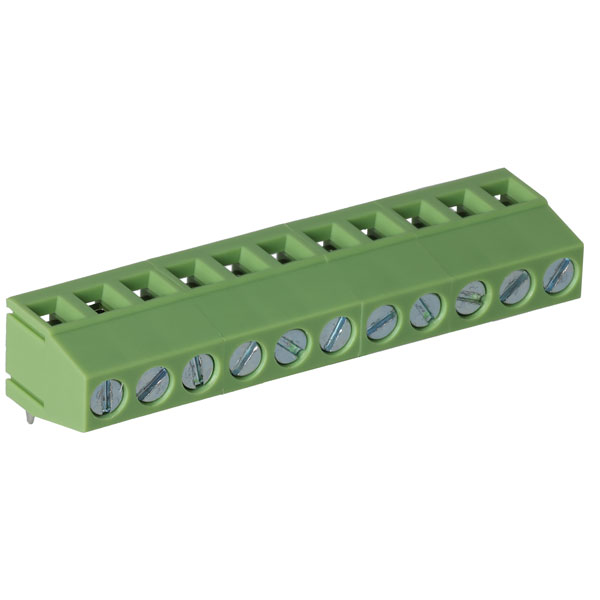

TruConnect 211709 5.08mm 11 Way 90deg Rising Clamp Terminal Block

TruConnect
Order Code:

21-1709

Brand: TruConnect MPN: 211709 EAN-13: 5053556021734

  • Quickly find another product in this range by No. of Ways:

Qty Unit Price (Ex VAT)
1+ £1.96
5+ £1.51
10+ £1.28
25+ £1.11
50+ £0.974
100+ £0.871
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
100 in stock, despatched same dayAdditional quantity lead time 5 months

Horizontal moulded rising clamp terminal blocks with 11 poles, 5.08mm pitch.


  • Standard profile design
  • Interlocking
  • Horizontal orientation
  • Rising clamp
  • Slotted screws
  • 24 to 12AWG (2.5mm²)
  • Rated voltage: 300V
  • Rated current: 15A
  • Moulded housing in green flame retardant PA66
  • Screws: zinc plated steel
  • Pin header: tin plated brass
  • UL approved
Pitch 5.08mm
No. of Ways 11
Mounting Type Through Hole
Mounting Direction Horizontal
Wire Gauge (AWG) 24 to 12AWG
No. of Levels 1
Wire Termination Rising Clamp
Voltage Rating 300V
Current Rating 15A
Colour Green
Wire Gauge 2.5mm²
