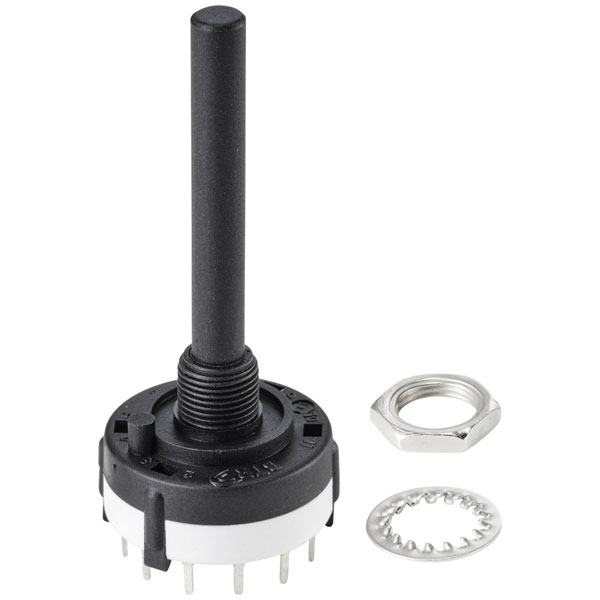

TruComponents 783106 Rotary Switch PCB Mount 12x30°,Solder IP50

TruComponents TC-9415608 is a high-quality rotary switch designed for PCB mounting, featuring a 12 x 30° configuration and a silver contact, suitable for reliable operation up to 250 V and 150 mA. Encased in a robust design, this solder-type switch provides IP50 protection, making it ideal for various electronic applications requiring precision switching, such as audio equipment, instrumentation, or control panels. The compatibility of its compact form factor and durable construction ensures seamless integration.

Type	Rotary Switch
Number of Decks	1
Current Rating (Amps)	150mA
Actuator Type	Rotary Shaft
(Ø)	26mm
Angle of Throw	12 x 30 °
Axle Ø	6mm
Casing/button Colour	Black-white
Connection	Socket
Contact Material	Steel nickel plated
Contact Resistance	≤ 0.05Ω (initial)
Dim	(Ø x L) 26 mm x 50 mm
Electrical lifespan	10000 cycles
Functions	Contact
Length	50mm
Lighting Type	None
Maximum Temperature	70°C
Min. temperature	-21°C
Misc Attribute	SR26E4712-R-50
Plastic free packaging	Plastic-free packaging
Switch position	1 x Off/On
Switching Voltage	250V
Width	26mm
