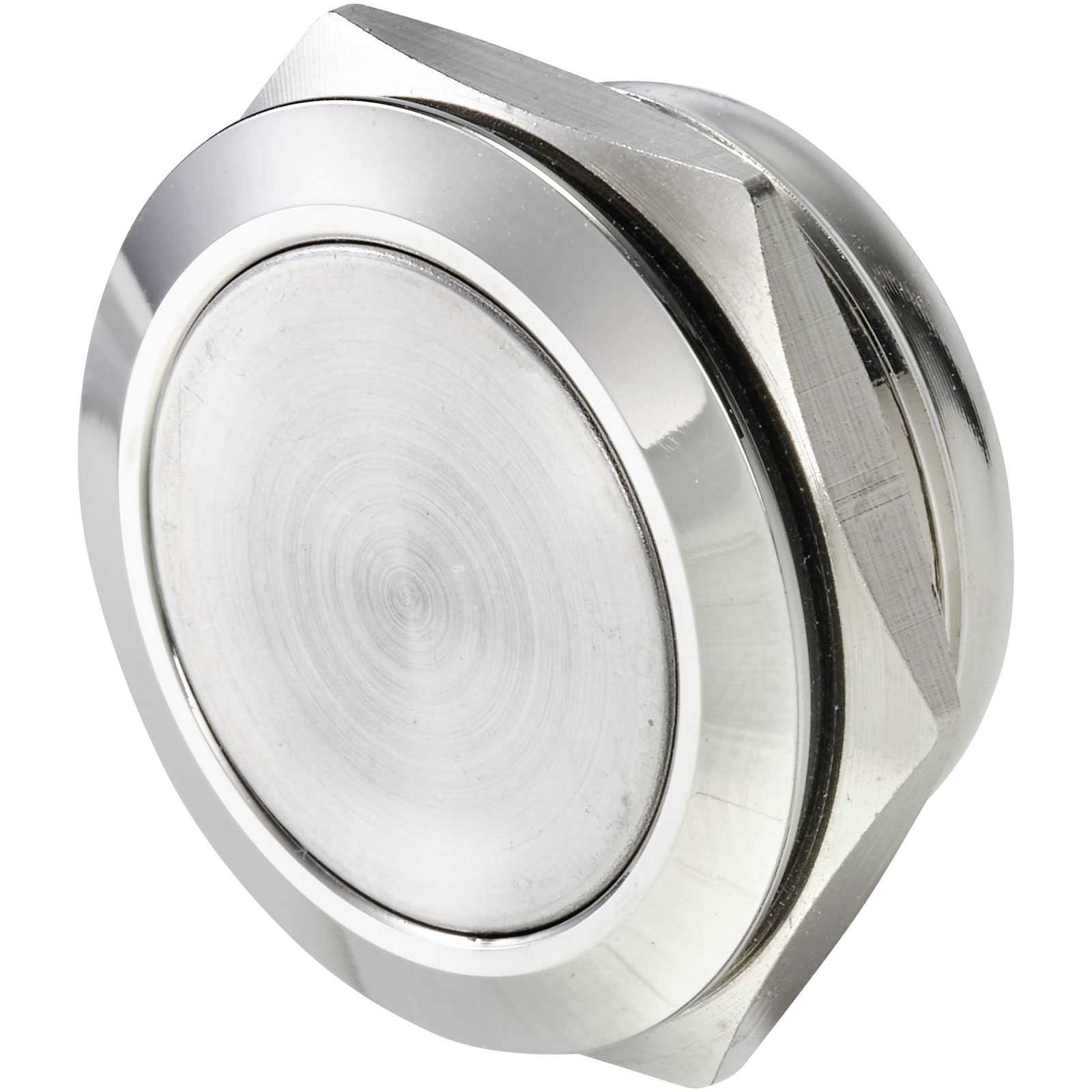

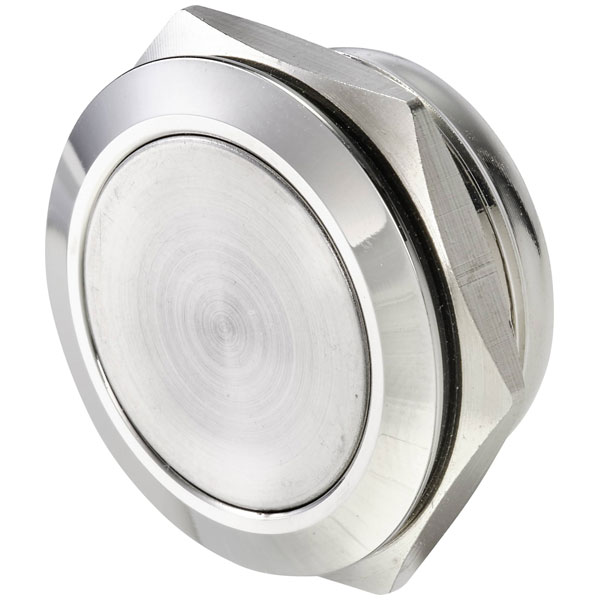

TruComponents 782725 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder,IP65

TruComponents
Order Code:

78-2725

Brand: TruComponents MPN: 782725 EAN-13: 4064161189802
Qty Unit Price (Ex VAT)
1+ £4.95
5+ £4.84
10+ £4.72
25+ £4.62
50+ £4.51
100+ £4.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
657 available to back orderBack-order availability date - 09/01/2026

The TruComponents TC-9563700 pushbutton features an Off/(On) action with a SPST-NO configuration, supporting up to 16 V and 0.05 A. Designed for panel mounting, it is IP65 rated, ensuring dust and water resistance, making it suitable for outdoor or industrial applications. Typical uses include control panels and equipment requiring reliable, temporary switching operations.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function Contact
Current Rating 0.05A
(Ø) 13.7mm
Button diameter 9mm
Casing/button colour Stainless steel look
Connection Plug
Contact Resistance ≤50mΩ
Dim (Ø x H) 13.7 mm x 14.3 mm
Electrical lifespan 50000 times
Height 14.3mm
Insulation Resistance ≥1000MΩ
IP Rating IP65
Material Stainless steel
Misc Attribute TC-9563700
Packaging Type Bulk
Recess diameter 12mm
Resistance ≥1000MΩ
Switch/button features Planar
Switching Voltage 16V
