TruComponents 782623 Pushbutton ,Panel Mount,Off/On,SPST,Solder,IP67

TruComponents
Order Code:

78-2623

Brand: TruComponents MPN: 782623 EAN-13: 4064161329413
Qty Unit Price (Ex VAT)
1+ £12.66
5+ £12.36
10+ £12.07
25+ £11.80
50+ £11.53
100+ £11.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
140 in stock, despatched in 4 working days

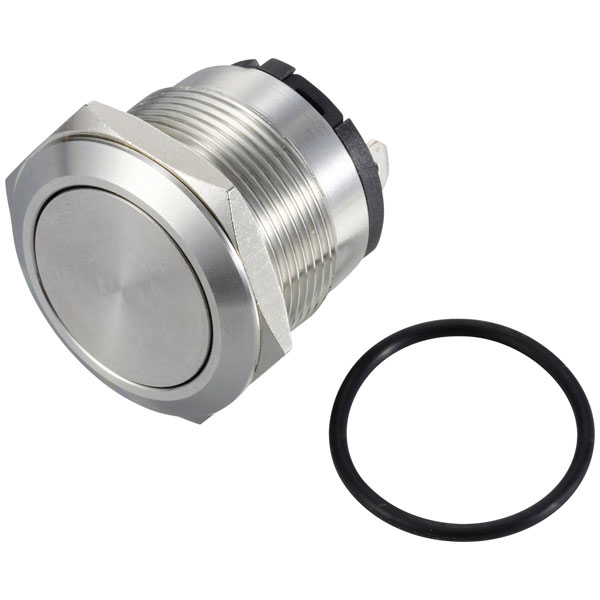

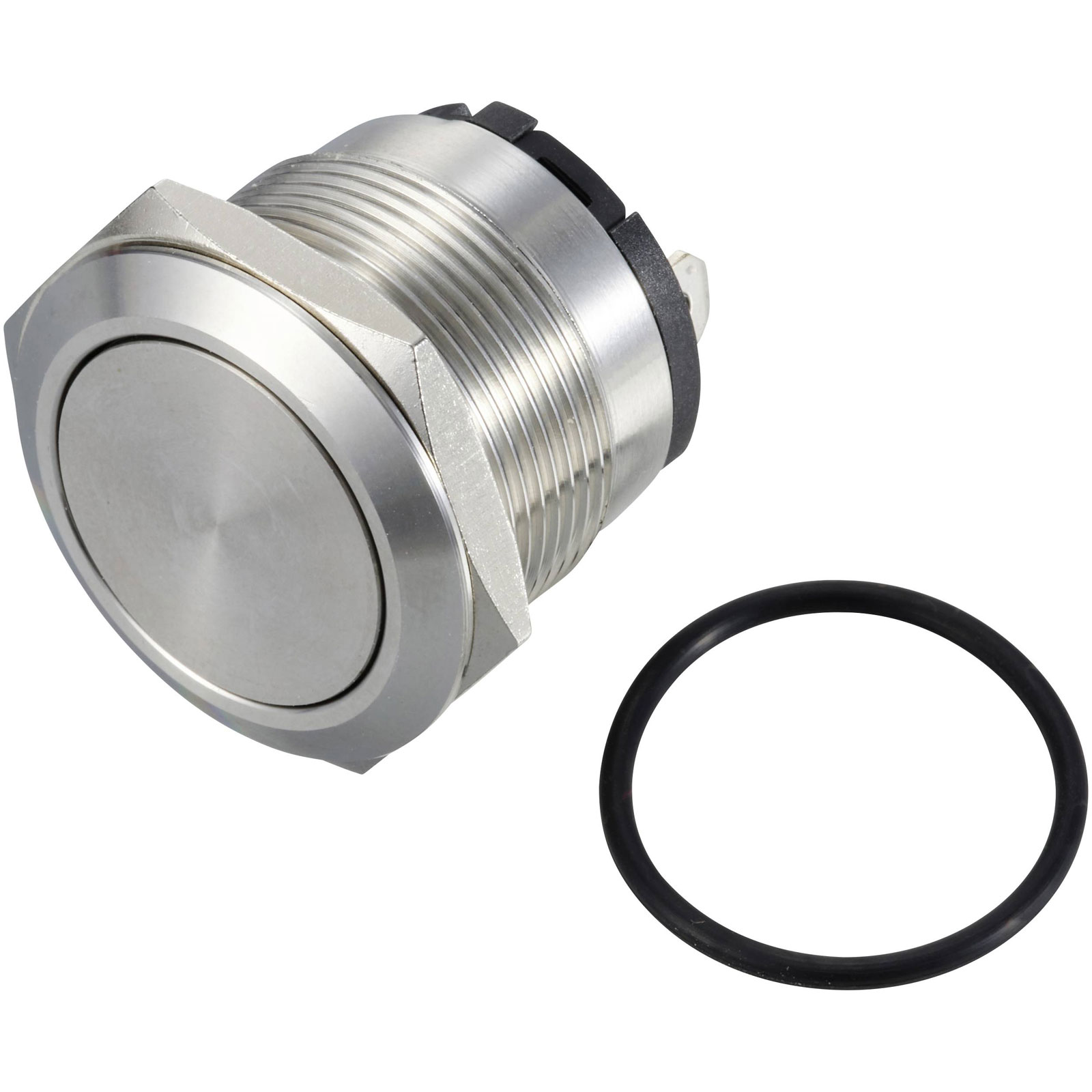

The TruComponents pushbutton switch, model TC-12819644, features a panel mount design with an Off/On SPST configuration. It is rated at 250 V AC and 20 A, suitable for robust applications requiring reliable switching. With an IP67 rating, it is ideal for outdoor or industrial environments requiring protection against dust and water ingress.
Type Pushbutton
Contact Configuration 1 x On/Off/On
Switch Function latch/0/latch
Current Rating 20A
(Ø) 23mm
Bulb Type LED (monochrome)
Connection Type C CEE 7/16 plug 4.8 mm
Dim (Ø x H) 23 mm x 28.2 mm
Factory colour Black
Front panel thickness 0.7 - 3mm
Height 28.2mm
Lighting type Spot lighting
Max. temperature +85°C
Min. temperature -20°C
Misc Attribute TC-R13-112DL-02
Number of Poles 1
Print motif None
Recess diameter 20.2mm
Switching Voltage 12V DC
