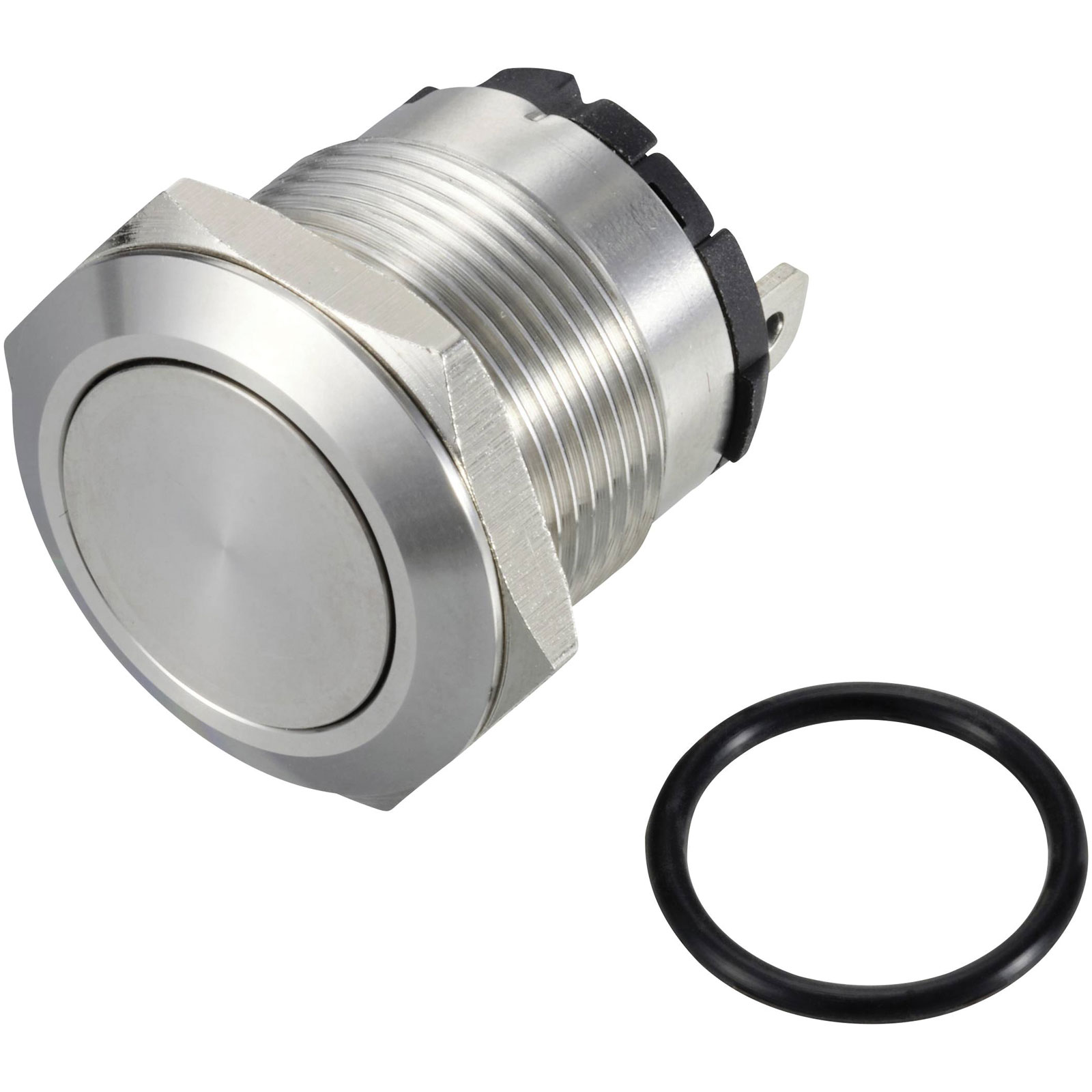

TruComponents 782620 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder,IP67

The TruComponents TC-12819632 is a panel mount pushbutton switch with an off/(on) momentary action. It features a 250 V AC and 20 A rating with IP67 protection, ideal for demanding environments. Typical applications include industrial controls and machinery activation.

Type	Pushbutton
Contact Configuration	1 x Off/On
Switch Function	latch
Current Rating	20A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	12
Bulb Type	Glow lamp
Colour	Yellow
Connection	Type C CEE 7/16 plug 6.3mm
Factory colour	Black
Front panel thickness	max 4mm
IP Rating	IP67
Lighting Type	Spot lighting
Maximum Temperature	55°C
Min. temperature	-25°C
Misc Attribute	TC-R13-207B2 B/B YELLOW
Number of Poles	1
Print motif	Bulb symbol
Recess Diameter	12.2mm
Switching Voltage	12V DC
