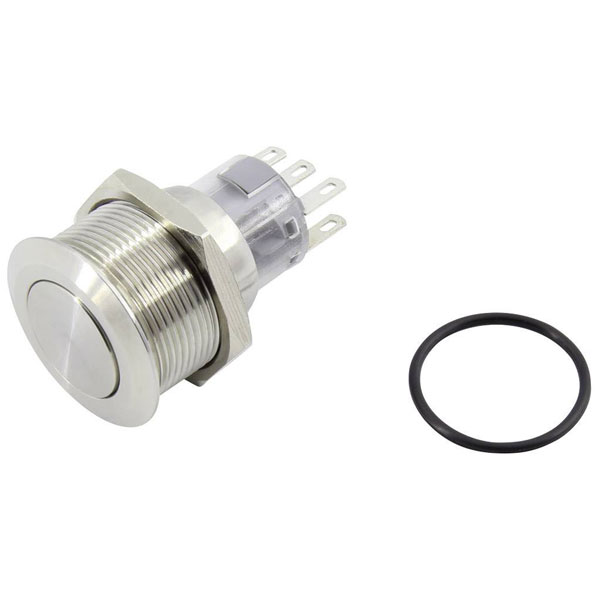

TruComponents 782124 Pushbutton ,Panel Mount,Off/(On),DPDT,Solder,IP67

The TruComponents 78-2124 pushbutton is a panel mount switch featuring a DPDT configuration with a momentary 2 x off/(on) action. It is rated for 250V and 5A, suitable for applications requiring reliable operation and protection against dust and water penetration, as ensured by its IP65 rating. This pushbutton is commonly used in industrial machinery, control panels, and automotive systems due to its robust design and durability.

Type	Pushbutton
Contact Configuration	2 x Off/(On)
Switch Function	Momentary
Current Rating	5A
Mounting	Panel
Panel Cutout Dimensions	20.2 dia
Bulb Type	LED (monochrome)
Casing/button Colour	Stainless steel
Connection	Solder tag
IP Rating	IP65
Lighting Type	None
Material	Stainless steel
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute	TC-GQ22-A-22/S203
Print motif	None
Recess Diameter	22mm
Shape	Round
Switching Voltage	250V
