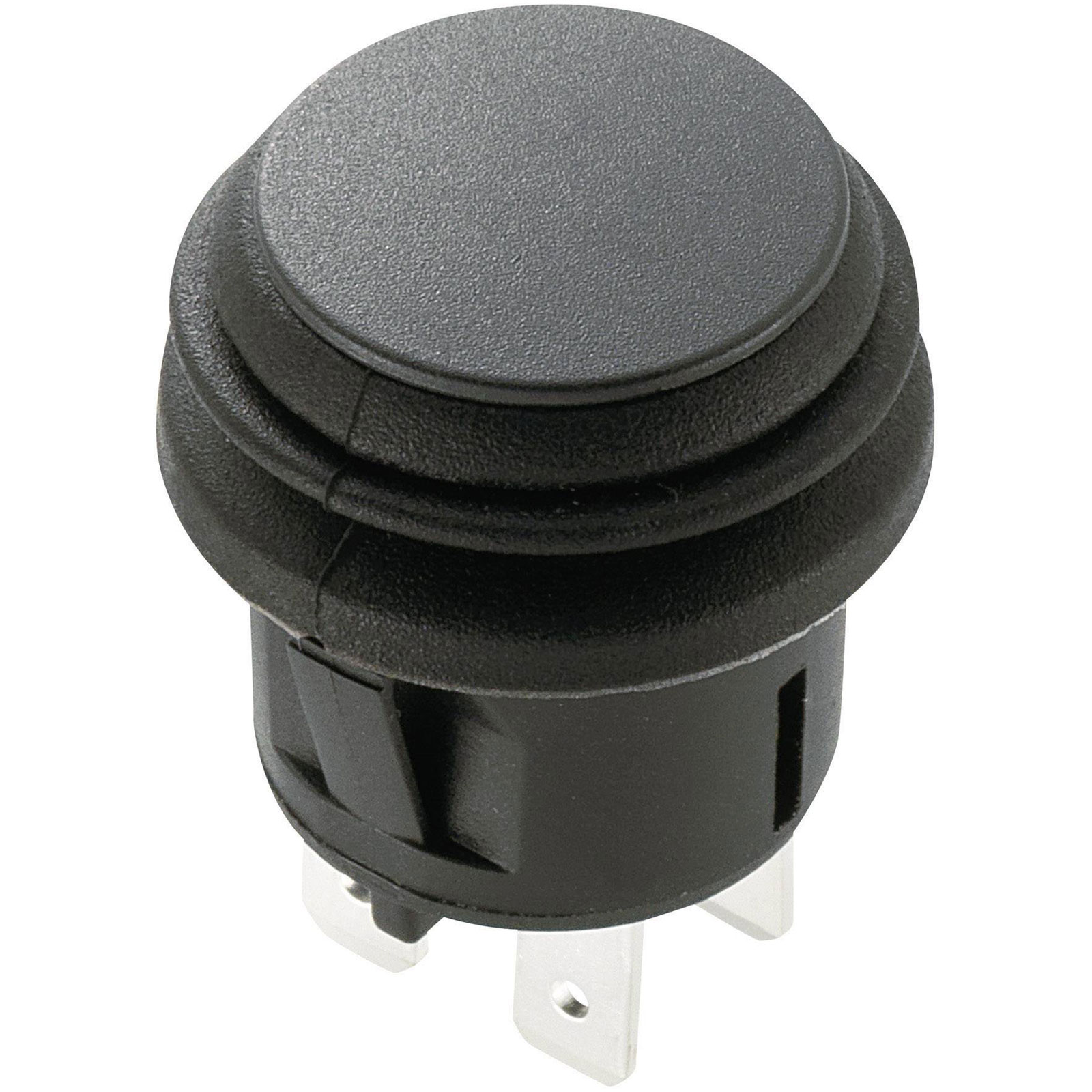

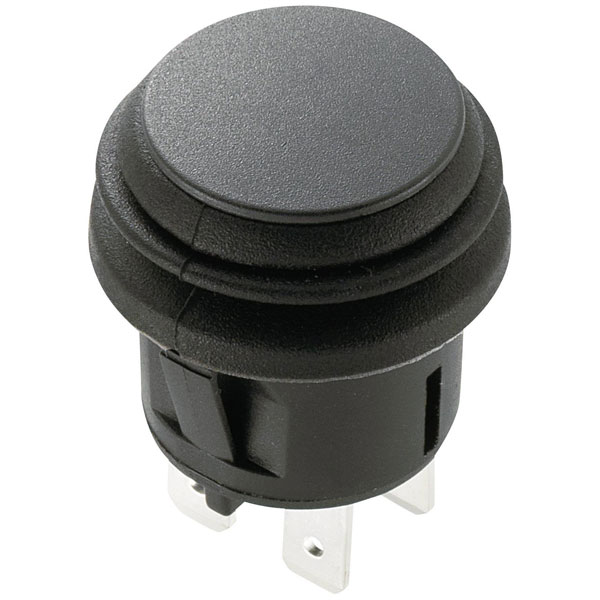

TruComponents 782121 Pushbutton ,Panel Mount,Off/On,DPST,Solder

The TruComponents 78-2121 pushbutton is a black, momentary, panel mount DPST switch with a 2x off/(on) configuration. It features a voltage rating of 250V AC and current rating of 6A. Typical applications include industrial control panels and electronic devices requiring reliable on-off functionality.

Type	Pushbutton
Contact Configuration	2 x Off/(On)
Switch Function	1 maker
Current Rating	6A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	20.2 dia
(Ø)	23mm
Board thickness (max.)	2.5mm
Casing/button Colour	Black
Connection	Type C CEE 7/16 plug 4.8mm
Dim	(Ø x H) 23 mm x 4.5 mm
Height	4.5mm
Lighting Type	None
Material	Polyamide
Misc Attribute	TC-R13-527A2-02
Recess Diameter	20.2mm
Switch/button features	Protruding
Switching Voltage	250V AC
