TruComponents 781979 Pushbutton ,Panel Mount,On/On,SPDT,Solder Pins

TruComponents
Standard range
Order Code:

78-1979

Brand: TruComponents MPN: 781979 EAN-13: 4064161299730
Qty Unit Price (Ex VAT)
1+ £2.82
5+ £2.76
10+ £2.69
25+ £2.63
50+ £2.57
100+ £2.52
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
479 in stock, despatched in 4 working days

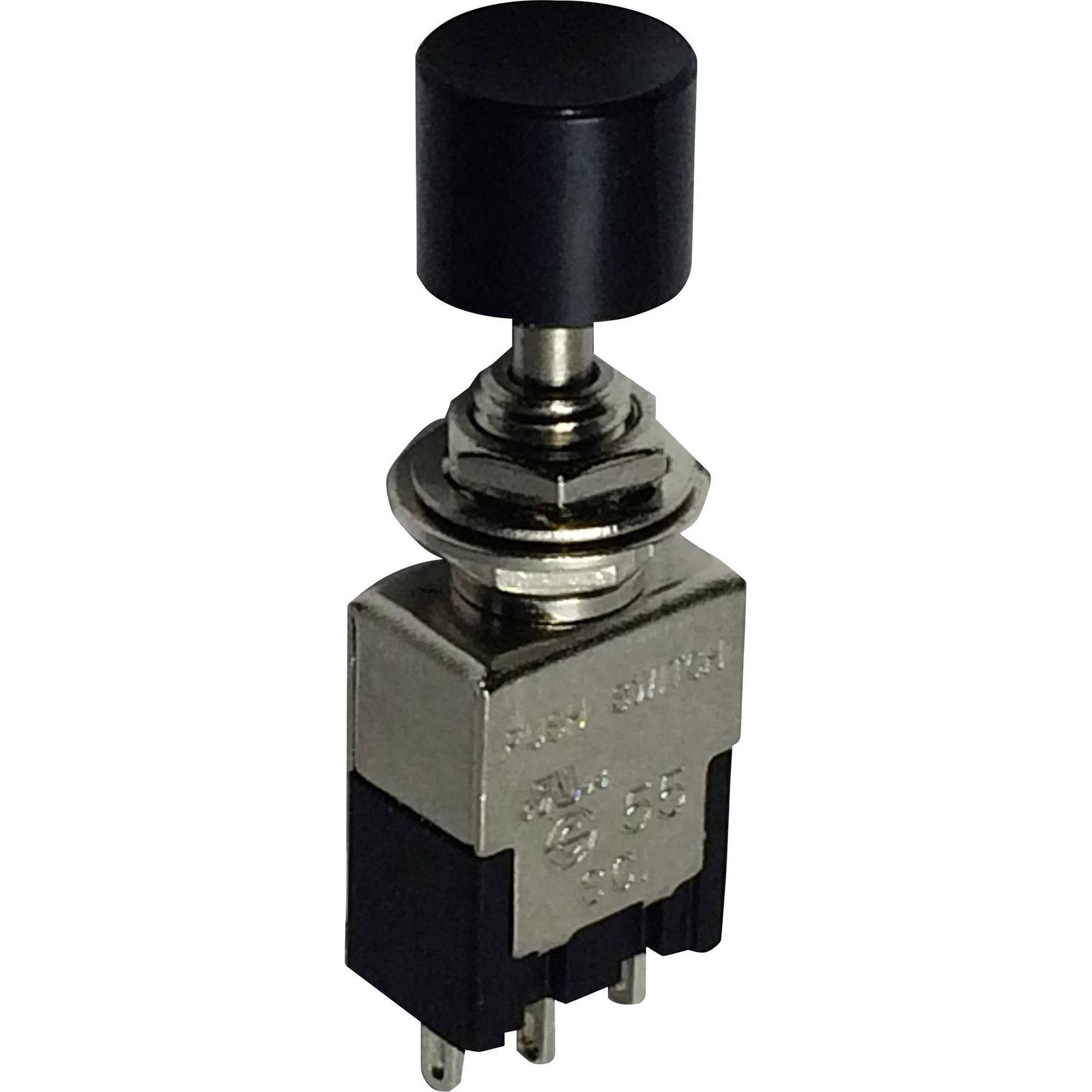

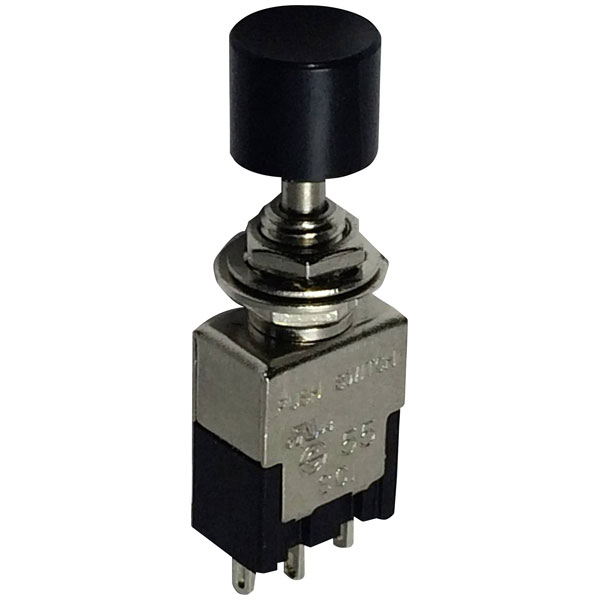

The TruComponents 78-1979 Black Pushbutton switch is a panel mount, single-pole double-throw (SPDT) device with an on/on switching action. It is rated for 250 V AC and 3 A, suitable for various electrical applications. This black pushbutton is often used in control panels, machinery, and equipment requiring reliable switch functionality.
Type Pushbutton
Board thickness (max.) 4mm
Casing/button colour Black
Connection Solder tag
Contact resistance 50mΩ
Contact type 1 change-over
Dielectric strength 1000 V/AC/60 s
Functions latch
Insulation resistance (500 V/DC) 100MΩ
Lighting type None
Misc Attribute TC-PA102A1BK
Recess diameter 6.2mm
RoHS-compliant Yes
Switch position 1 x On/On
Switch/button features Protruding
Switching current (max.) 3A
Switching voltage 250V AC
