TruComponents 781939 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

TruComponents
Order Code:

78-1939

Brand: TruComponents MPN: 781939 EAN-13: 4064161299204
Qty Unit Price (Ex VAT)
3+ £1.57
5+ £1.53
10+ £1.50
25+ £1.46
50+ £1.43
100+ £1.40
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,138 in stock, despatched in 4 working days

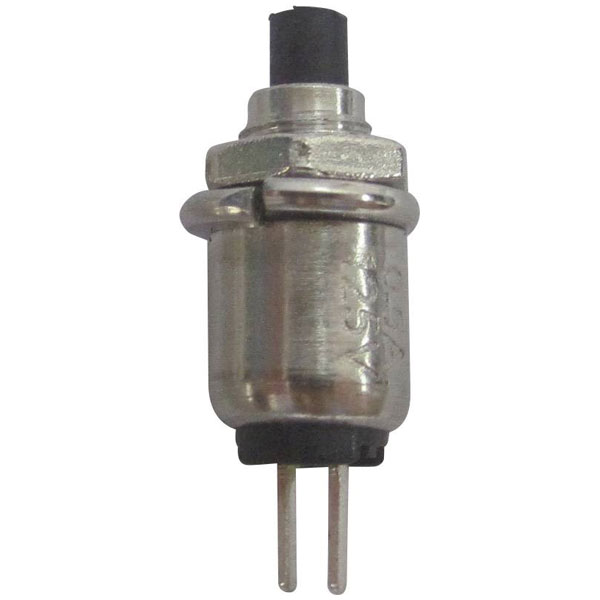

The TruComponents 78-1939 Pushbutton is a reliable and durable momentary switch, ideal for various electronic applications. Rated at 125V AC and 0.5A, this pushbutton features a protruding black button cap and solder pins for easy installation. Its robust construction ensures long-lasting performance, making it a perfect choice for control panels and other demanding environments.
Type Pushbutton
Board thickness (max.) 1mm
Casing/button colour Black
Connection Solder pins
Contact Resistance max. 50mΩ
Contact Type 1 maker
Dielectric Strength 1500 V/AC/60 s
Functions momentary
Insulation Resistance min 100 MΩ/500V DC
Lighting type None
Material Plastic
Misc Attribute TC-R13-81A-05BK
Recess diameter 5.2mm
Switch position 1 x Off/(On)
Switch/button features Protruding
Switching current (max.) 0.5A
Switching Voltage 125V AC
