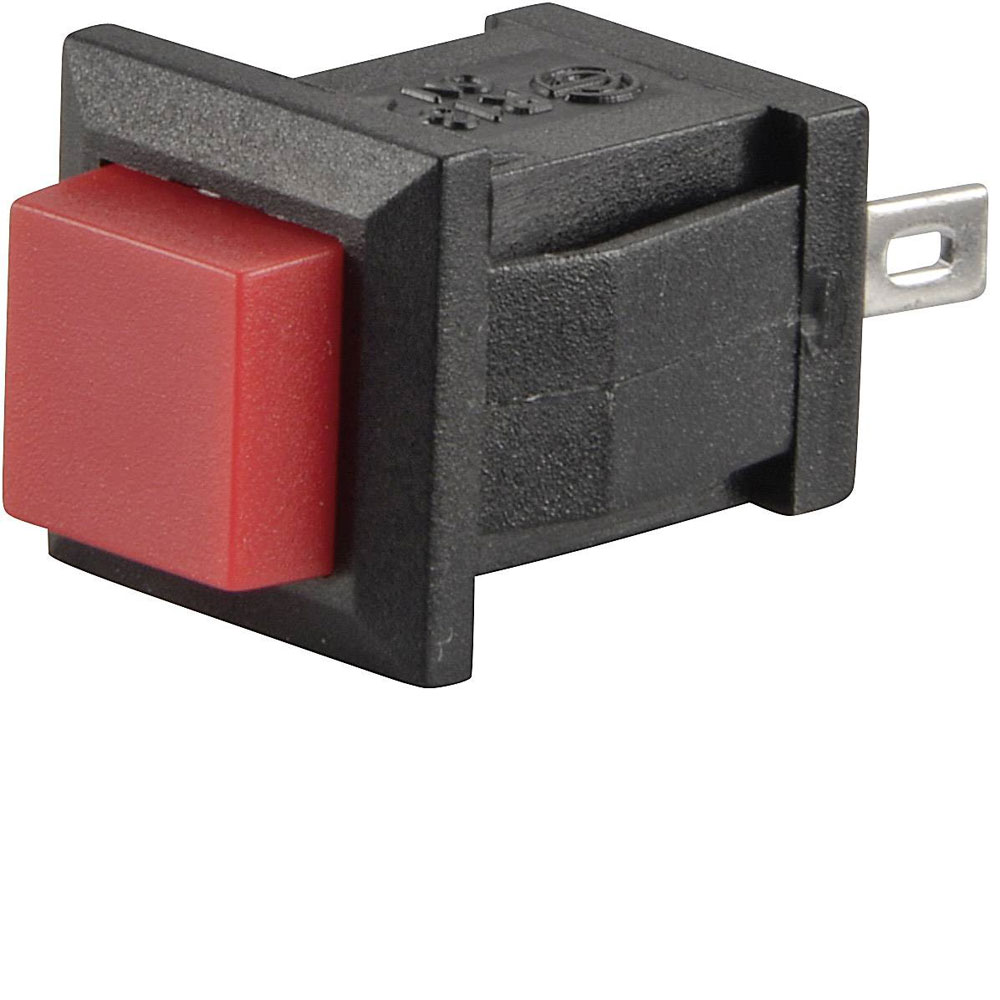

TruComponents 781936 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

TruComponents
Standard range
Order Code:

78-1936

Brand: TruComponents MPN: 781936 EAN-13: 4064161299174
Qty Unit Price (Ex VAT)
1+ £0.925
5+ £0.903
10+ £0.882
25+ £0.862
50+ £0.843
100+ £0.825
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,504 in stock, despatched in 4 working days

The TruComponents 78-1936 Pushbutton is a reliable and durable momentary switch, ideal for various electronic applications. Rated at 250V AC and 0.5A, this pushbutton features a protruding square red button cap, solder tag terminals, and snap-in fastening for easy installation. Its robust polyamide construction ensures long-lasting performance, making it a perfect choice for control panels and other demanding environments.
Type Pushbutton
Board thickness (max.) 3mm
Casing/button colour Red
Connection Solder tag
Contact type 1 maker
Dielectric strength 1000 V/AC/60 s
Front panel cut-out 11.3 x 12.6 mm
Functions momentary
Insulation resistance min 100 MΩ/500V DC
Key type Red
Lighting type None
Material Polyamide
Misc Attribute TC-R13-57A-02RT
RoHS-compliant Yes
Switch position 1 x Off/(On)
Switch/button features Protruding
Switching current (max.) 0.5A
Switching voltage 250V AC
