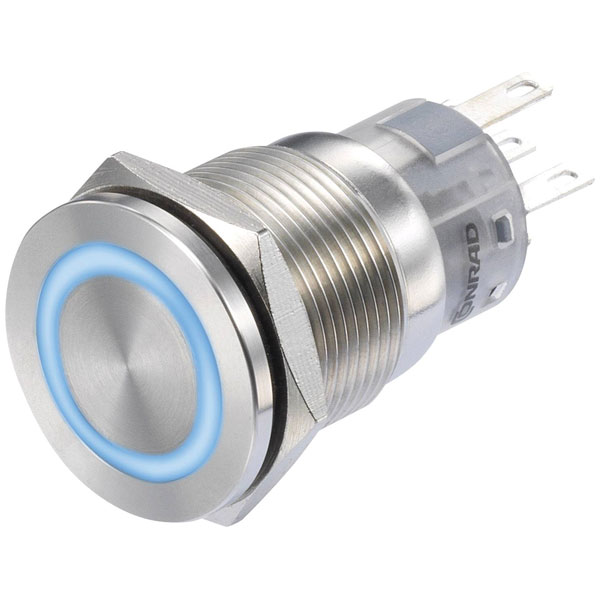

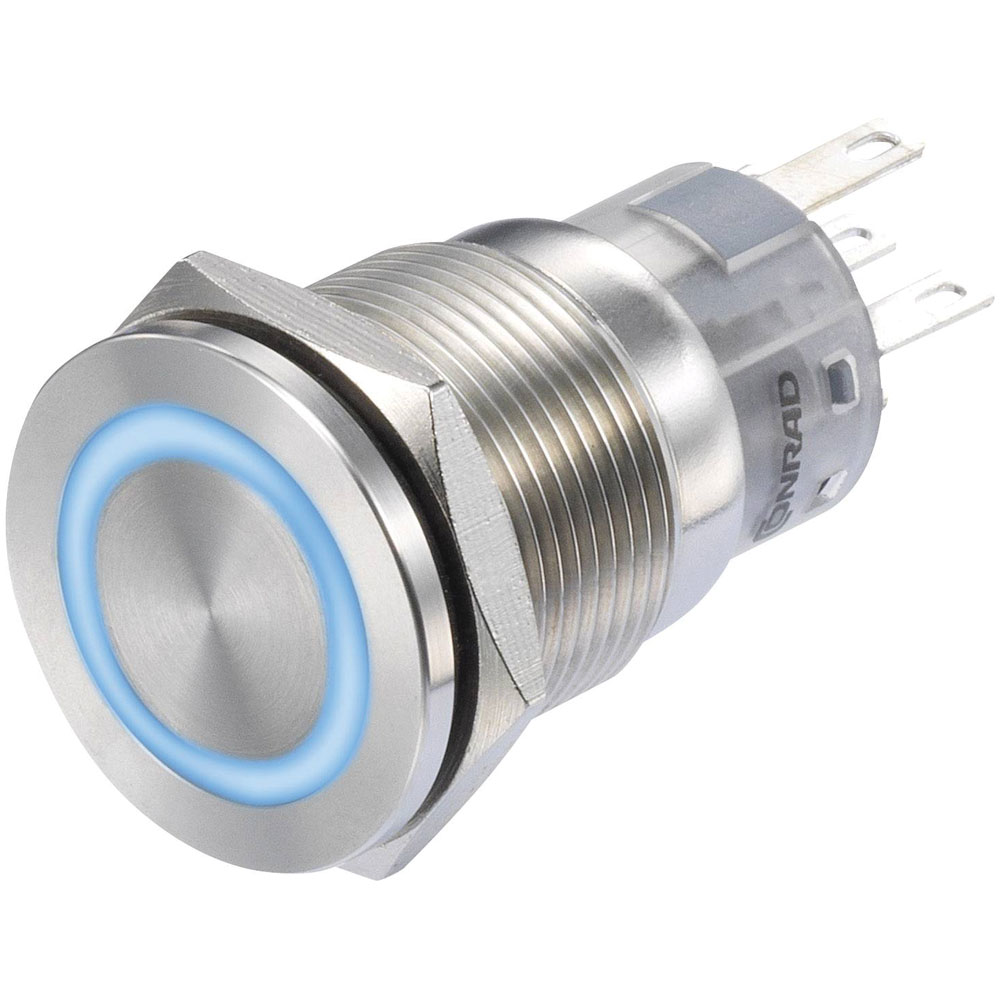

TruComponents 781890 Pushbutton ,Panel Mount,Off/(On),SPDT,Solder,IP65

The TruComponents 78-1890 Pushbutton is a high-quality, momentary switch designed for various electrical applications. Key features include a maximum switching current of 3A at 250V AC, a blue ring LED indicator, and a robust stainless steel construction. The pushbutton is IP65 rated for dust and water resistance, ensuring reliable and long-lasting performance. Its flat actuator and solder tag terminals facilitate easy installation, making it an excellent choice for both industrial and consumer electronics.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	Momentary
Current Rating	3A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	N/A
Board thickness (max.)	1.8mm
Bulb Type	LED (monochrome)
Button Diameter	22mm
Casing/button Colour	Steel
Colour	Blue
Connection	Type C CEE 7/16 plug 2.8mm
Durability	1 000 000 cycles
Electrical lifespan	50000 cycles
IP Rating	IP65
Lighting Type	Circular lighting
Material	Steel
Maximum Temperature	+55°C
Min. temperature	-20°C
Misc Attribute	LAS1-AGQS-11E/B/12V
Print motif	None
Recess depth	38.2mm
Recess Diameter	19mm
Shape	Round
Switch/button features	Protruding
Switching Voltage	250V AC
