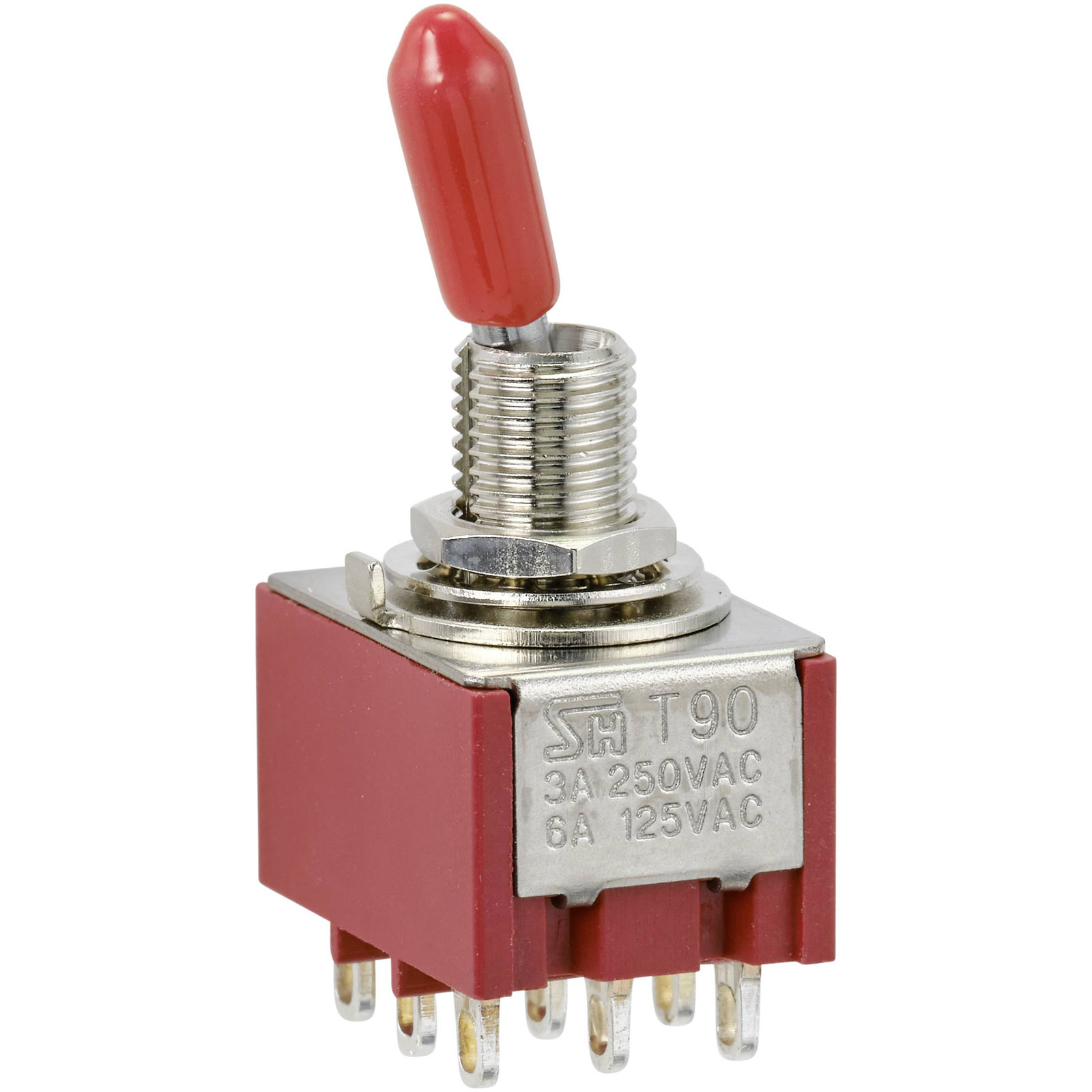

TruComponents 751508 Toggle switch Panel Mount On/On 3PDT Solder Terminal

TruComponents
Order Code:

75-1508

Brand: TruComponents MPN: 751508 EAN-13: 4064161162096
Qty Unit Price (Ex VAT)
1+ £5.41
5+ £4.81
10+ £4.42
25+ £4.17
50+ £3.94
100+ £3.80
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
295 in stock, despatched in 4 working days

The TruComponents 751508 Toggle Switch is a high-quality, reliable component designed for a wide range of applications. This Single Pole Double Throw (SPDT) switch offers an On/On functionality, making it ideal for controlling two different circuits with a single switch. The chrome-plated toggle has a removable red insulating sleeve.
Contact Configuration 3 x On/On
Switch Function latch
Current Rating (Amps) 3A
Actuator Type Steel lever (insulated)
Termination Style Solder tag
Casing/button colour Red
CS 4.7mm
Dim (L x W x H) 17.56 x 13 x 32.85 mm
Height 32.85mm
Industrial packaging Compatible with
Length 17.56mm
Lighting type None
Max. temperature 80°C
Min. temperature -10°C
Misc Attribute TC-9354008
Number of Pins 9
Recess depth 13.46mm
Recess diameter 6.35mm
Switching Voltage 250V AC
Type Toggle switch
Width 13mm
