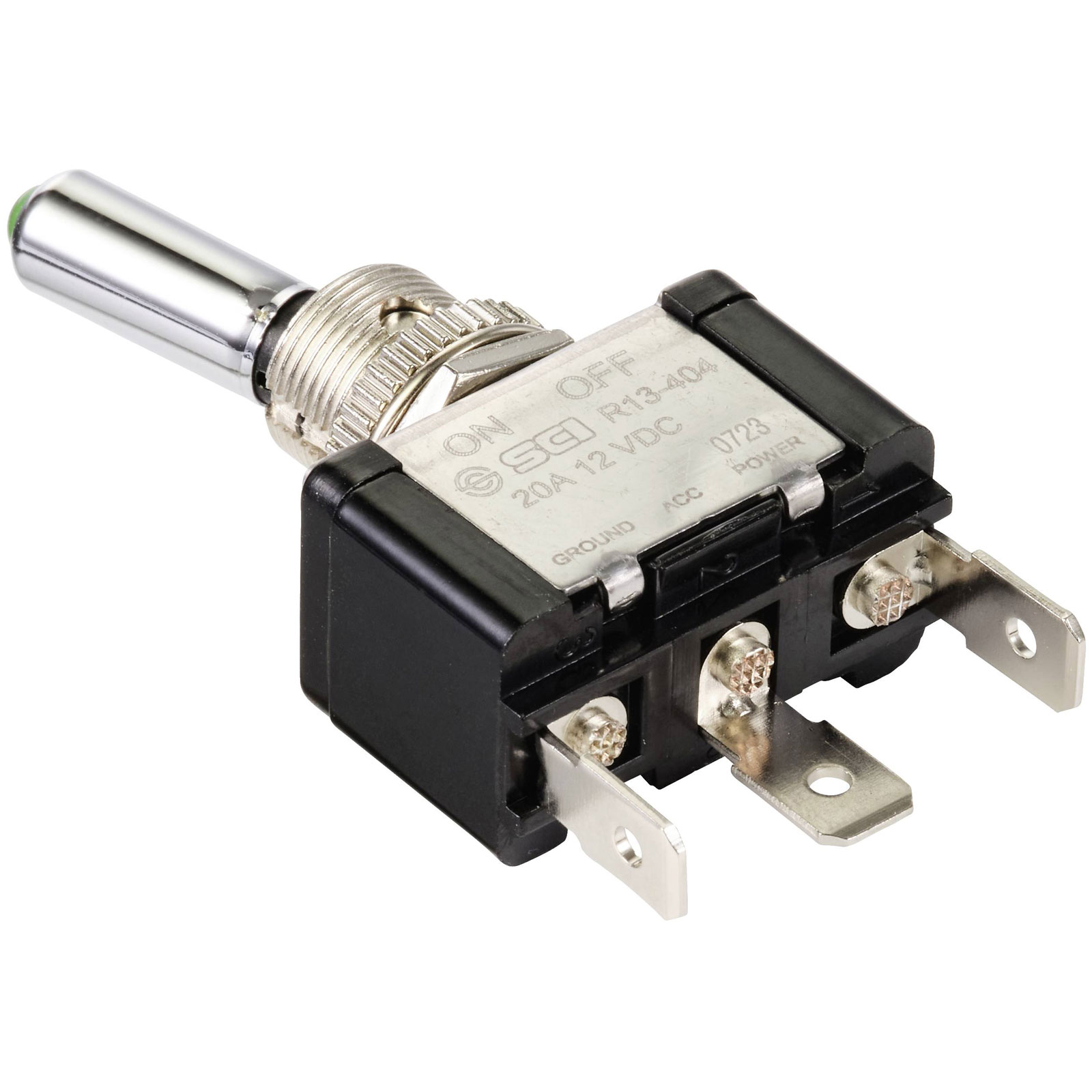

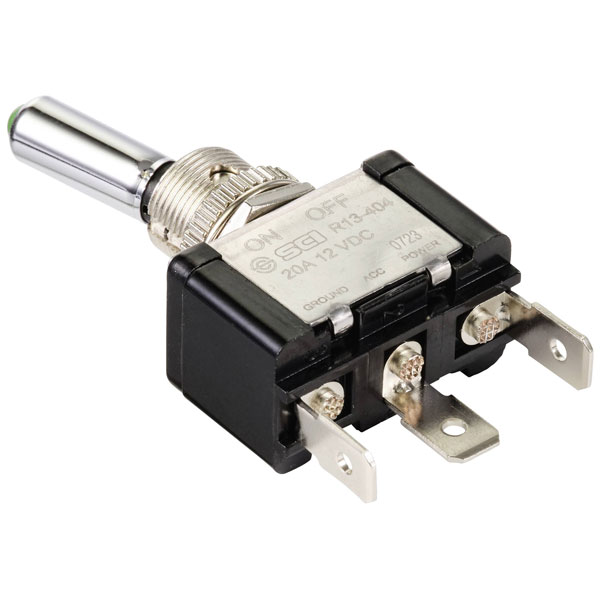

TruComponents 751496 Toggle switch Illuminated Off/On SPST Quick Connect

TruComponents
Order Code:

75-1496

Brand: TruComponents MPN: 751496 EAN-13: 4064161245140
Qty Unit Price (Ex VAT)
2+ £3.59
5+ £3.19
10+ £2.93
25+ £2.76
50+ £2.61
100+ £2.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
924 in stock, despatched in 4 working days

The TruComponents 751496 Toggle Switch is the perfect solution for those seeking reliable and visible control in their electrical systems. This high-quality switch combines functionality with a sleek design, making it ideal for a variety of applications.
Contact Configuration 1 x Off/On
Switch Function latch
Current Rating (Amps) 20A
Actuator Type Plastic lever
Termination Style Type C CEE 7/16 plug 6.3 mm
Bulb Type LED (monochrome)
Casing/button colour Black
Colour Green
Contact Resistance 50mΩ
Dielectric Strength (1 min) 1500V AC
Front panel thickness max. 6mm
Insulation Resistance (500 V DC) 100MΩ
Lighting type Spot lighting
Max. temperature 85°C
Min. temperature -20°C
Misc Attribute TC-11193844
Number of Poles 1
Plastic free packaging Plastic-free packaging
Recess diameter 12mm
Switching Voltage 12V DC
Type Toggle switch
