TruComponents 751487 Toggle switch Panel Mount On/On DPDT Quick Connect

TruComponents
Order Code:

75-1487

Brand: TruComponents MPN: 751487 EAN-13: 4064161299792
Qty Unit Price (Ex VAT)
1+ £8.84
5+ £7.86
10+ £7.22
25+ £6.80
50+ £6.43
100+ £6.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
641 in stock, despatched in 4 working days

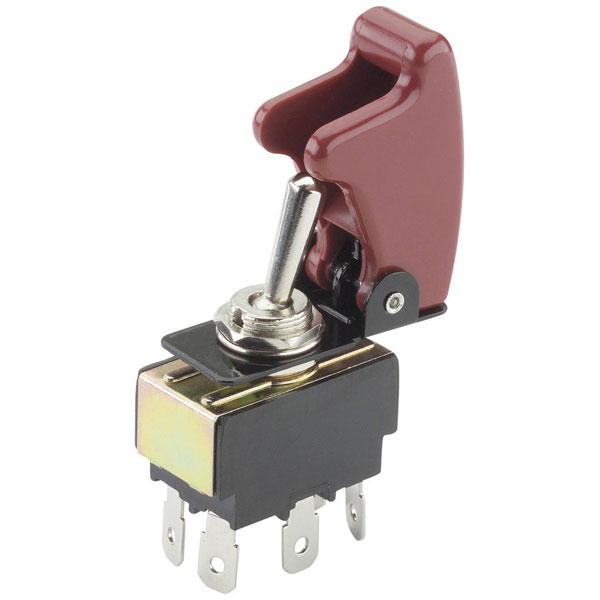

Toggle switch with red safety cap. Actuation only possible after it is opened. Forced reset of switch when closed.
Switch Function latch
Current Rating (Amps) 10A
Casing/button colour Metal
Connection Type C CEE 7/16 plug 6.3 mm
Contact Resistance 50mΩ
Dielectric Strength 1500 V/AC/60 s
Front panel thickness 4mm
Insulation Resistance 500 V/DC/100MΩ
Lighting type None
Misc Attribute TC-R13-28B-01/R17-10
Number of Pins 2
Recess diameter 12.2mm
Switch position 2 x On/On
Switch/button features Steel lever (+ safety cap)
Switching Voltage 250V AC
Type Toggle switch
