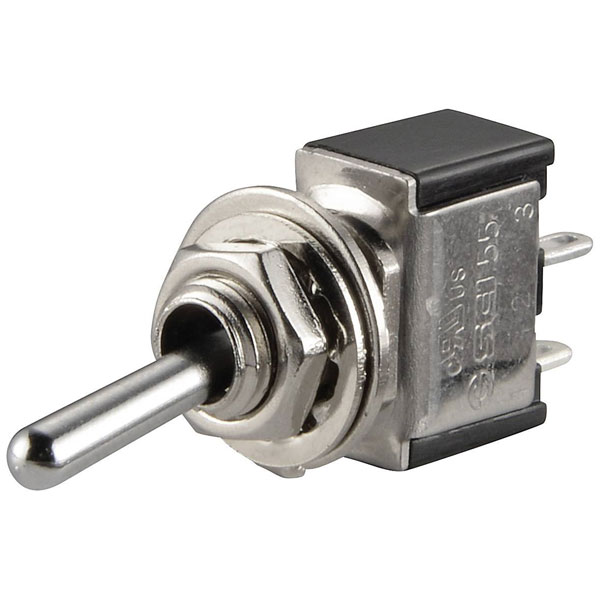

TruComponents 751474 Toggle switch Panel Mount Off/On SPST Solder Terminals

TruComponents
Order Code:

75-1474

Brand: TruComponents MPN: 751474 EAN-13: 2050004956627
Qty Unit Price (Ex VAT)
2+ £2.42
5+ £2.16
10+ £1.98
25+ £1.87
50+ £1.76
100+ £1.70
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
5,678 available to back orderBack-order availability date - 09/01/2026

Contact and connection of copper-silver alloy. Silver-plated surface. Epoxy resin sealed against dust. Moisture resistant. Stainless steel cover. With guiding nose.
Contact Configuration 1 x Off/On
Switch Function latch
Current Rating (Amps) 3A
Actuator Type Steel lever
Termination Style Solder tag
Casing/button colour Metal
Contact Resistance 50mΩ
Dielectric Strength 1000 V/AC/60 s
Front panel thickness 1mm
Insulation Resistance 500 V/DC/100MΩ
Lighting type None
Misc Attribute TC-TA101A1
Number of Poles 1
Recess diameter 6.2mm
Switching Voltage 250V AC
Type Toggle switch
