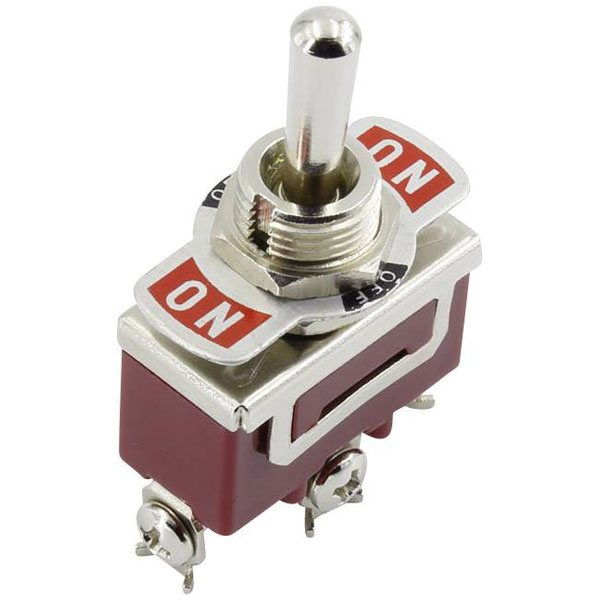

TruComponents 751449 Toggle switch Panel Mount Off/On DPST Screw Terminals

This high-quality Toggle Switch is designed for reliable performance in a variety of applications. With its Double Pole Single Throw (DPST) configuration, it offers enhanced control and versatility. Perfect for both professional and DIY projects, this switch ensures durability and ease of use.

Mounting Type	Panel Mount
Contact Configuration	2 x Off/On
Switch Function	latch
Current Rating (Amps)	15A
Illumination Type	Non-Illuminated
Actuator Colour	Chrome
Dim	(L x W) 32.5 mm x 20 mm
Length	32.5mm
Lighting Type	None
Maximum Temperature	+80°C
Min. temperature	-25°C
Misc Attribute	XT-21B
Number of pins	2
Recess depth	29mm
Recess Diameter	12mm
Switching Voltage	250V AC
Termination Style	Screws
Type	Toggle switch
Width	20mm
