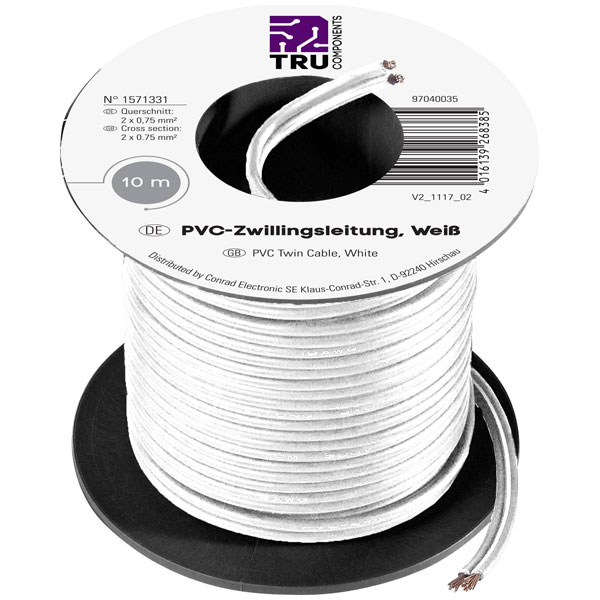

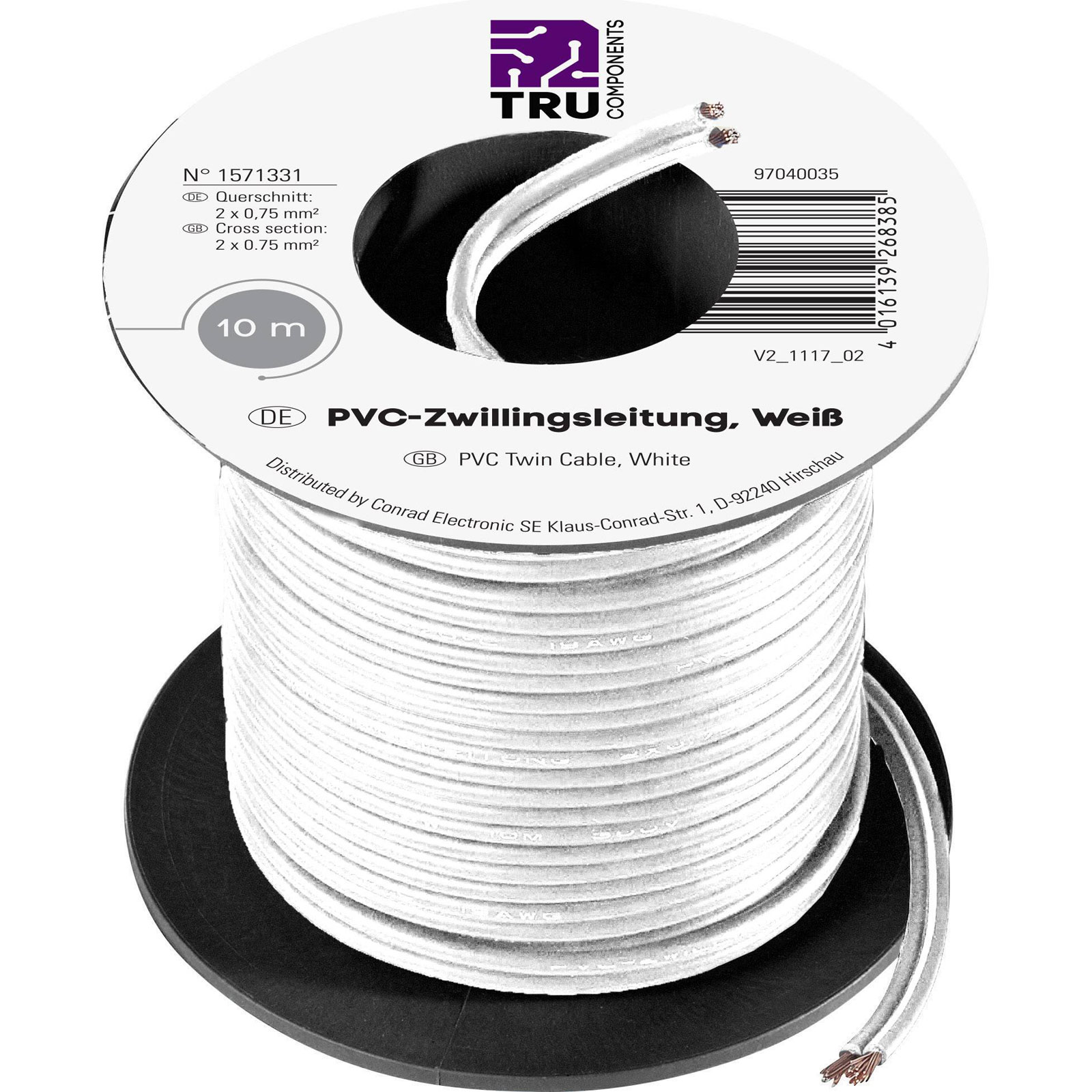

TruComponents 656442 Stranded 2x0.75mm² Wh 10m

For connection of low-power electrical devices (radios, table lamps, clocks, etc.) with very low mechanical demands in domestic situations and where permitted in the corresponding device regulations. The cable can also be used as speaker cables. 6 mm² is particularly suited for connection of Hi-Fi speakers. The cable is not suitable for the connection of cooking and heating equipment or for use outdoors. CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas. Specification explanation: The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.

Colour	White
Conductor Cross Section	0.75mm²
Number of Cores	2
Insulation Material	PVC
Length	10m
Type	Cable
Core layout	27 x 0.19mm
Height	2.3mm
Hole Ø (coil)	35mm
Max. temperature range (fixed installation)	+70°C
Min. temperature range (fixed installation)	-20°C
Nominal Voltage	48V
Packaged	Yes
Sold by Metre	No
Width	4.5mm
