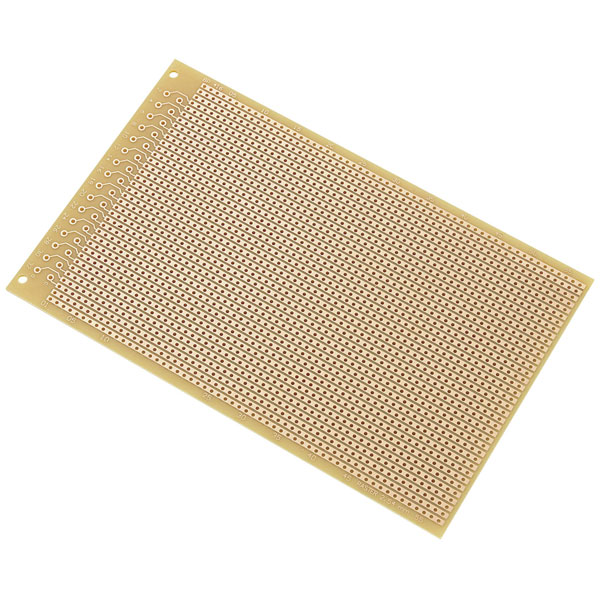

TruComponents 654991 Eurocard PCB Phenolic 160 mm x 100 mm 35 µm,Pitch:2.54 mm

654991 Eurocard PCB, designed for optimal performance and reliability. Measuring 160 mm x 100 mm with a thickness of 35 µm, this phenolic printed circuit board is engineered to meet the highest standards. With a pitch of 2.54 mm, it offers versatility for various applications, making it an ideal choice for your electronic projects. Elevate your designs with this high-quality PCB that ensures durability and efficiency. Eurocard for 31-pin power strip connector.

Type	Eurocard PCB
Hole Diameter	1mm
Thickness	1.6mm
Base Material	Phenolic paper
Copper coating (thickness)	35µm
CS	2.54mm
Dim	(L x W) 160 mm x 100 mm
Length	160mm
Misc Attribute 1	Solder strip grid
Misc Attribute 2	single sided
Misc Attribute 3	SU527466
Width	100mm
