bold>Reliable data transfer for your network
The Tru Components Category 7 network cables enable data transfer speeds of up to 10000 Mbps - 10x faster than Category 6 and 100x faster than Category 5 cables. Means no more sluggishness during high data volume transfers such as HD streaming and some server applications. Which makes this highly flexible patch cable a viable Wi-Fi alternative. The advantages are obvious: No radiation exposure, maximum security, but above all no speed loss - whatever is fed on one side, comes out on the other side.
Noise Supression Shielding (S/FTP)

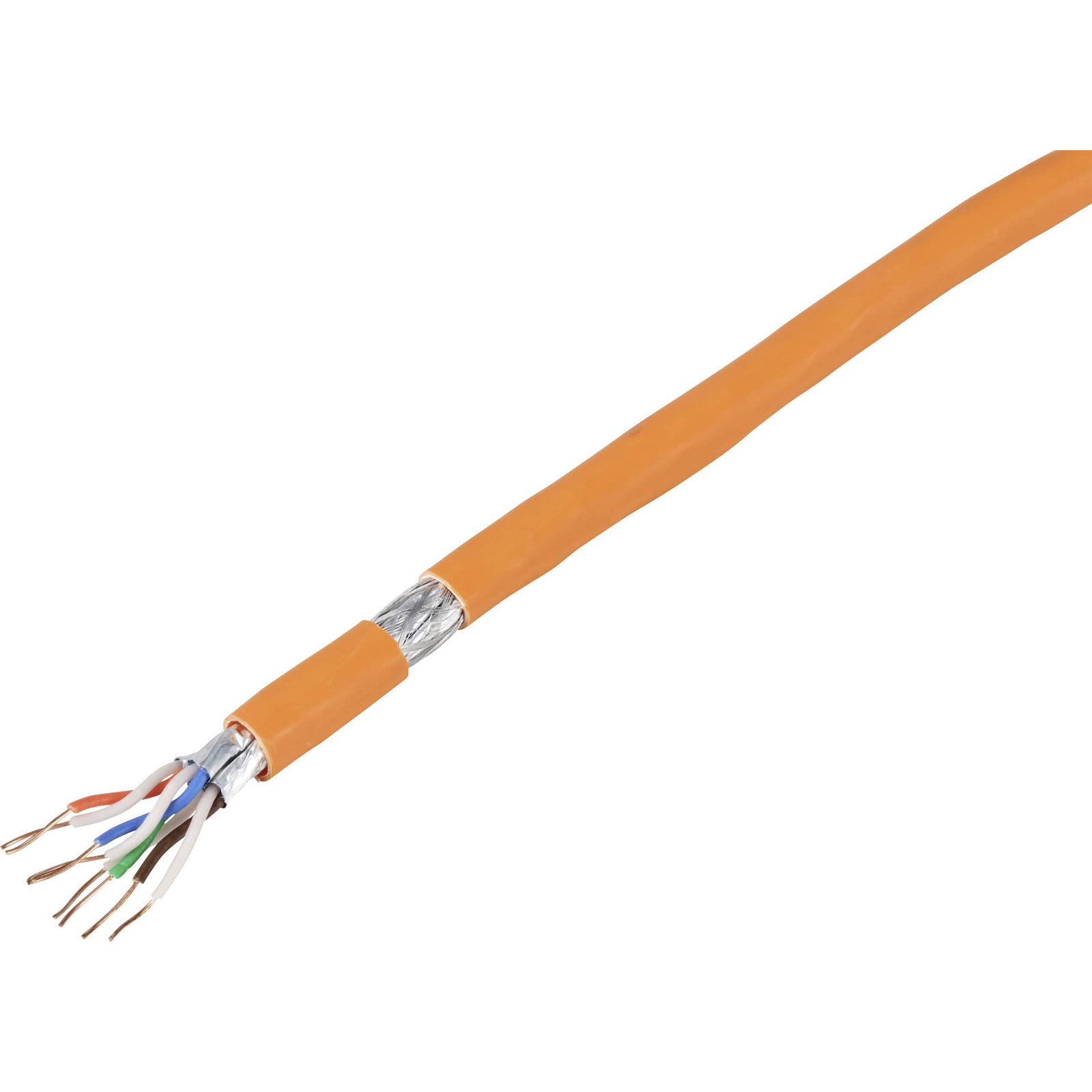

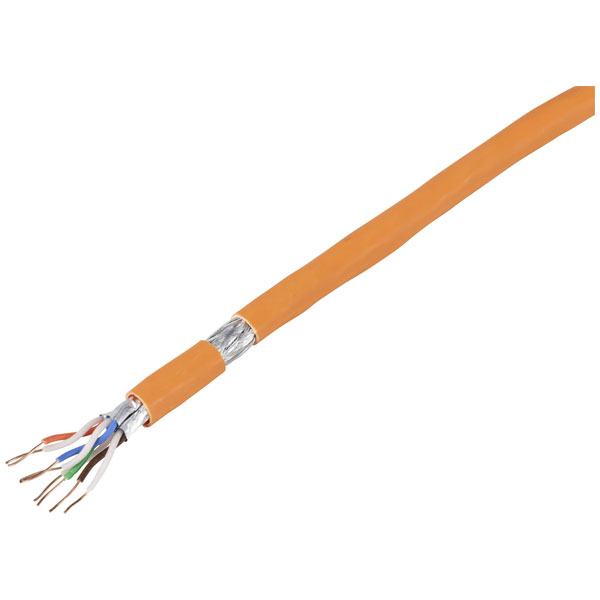

The CAT7 network cables from Tru Components come with multi-layer shielding. Each pair of cores is shielded by metal film. The cable as a whole comes with a wire mesh jacket. This type of shielding prevents e.g. cross-talk from cables running parallel to each other, thus ensuring data transfer without interference caused by external sources.
Data transfer by means of CCA (aluminum)
CCA marks bi-metallic one- and multi-wired lines/cables with copper-plated aluminium core for high-frequency usage areas. The skin effect, also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density in the inside of the conductor becomes lower with increasing frequency than that at the outer surface. The inner cross-section area of a conductor through which high-frequency alternating current is flowing practically does not do any transmission function.
The
network cable - CCA is thus a really economical and
weight-reduced alternative to the conventional full-copper line and this at equivalent power and transmission characteristcs.
| Type |
Network Cable |
| AWG max. |
23 |
| Cross section |
4 x 2 x 0.24 mm² |
| Cross section (each core) |
0.24mm² |
| Factory colour |
Orange |
| Halogen-free |
Yes |
| Insulation material |
Foam Skin PE |
| Manufacturer part # |
TC-8400644 |
| Max. frequency |
1000MHz |
| Max. length sold by the metre |
100m |
| Max. temperature range (fixed installation) |
75°C |
| Max. temperature range (flexible installation) |
50°C |
| Min. temperature range (fixed installation) |
-20°C |
| Min. temperature range (flexible installation) |
0°C |
| Misc Attribute |
TC-8400644 |
| No. of leads |
8 |
| Outside Ø |
7.60mm |
| RoHS-compliant |
Yes |
| Shielding |
S/FTP |
| Specification |
CAT 7 |
| Standards |
CPR-Eca certified |
| Twisted pair cabling (part 1) |
Yes (1) |
