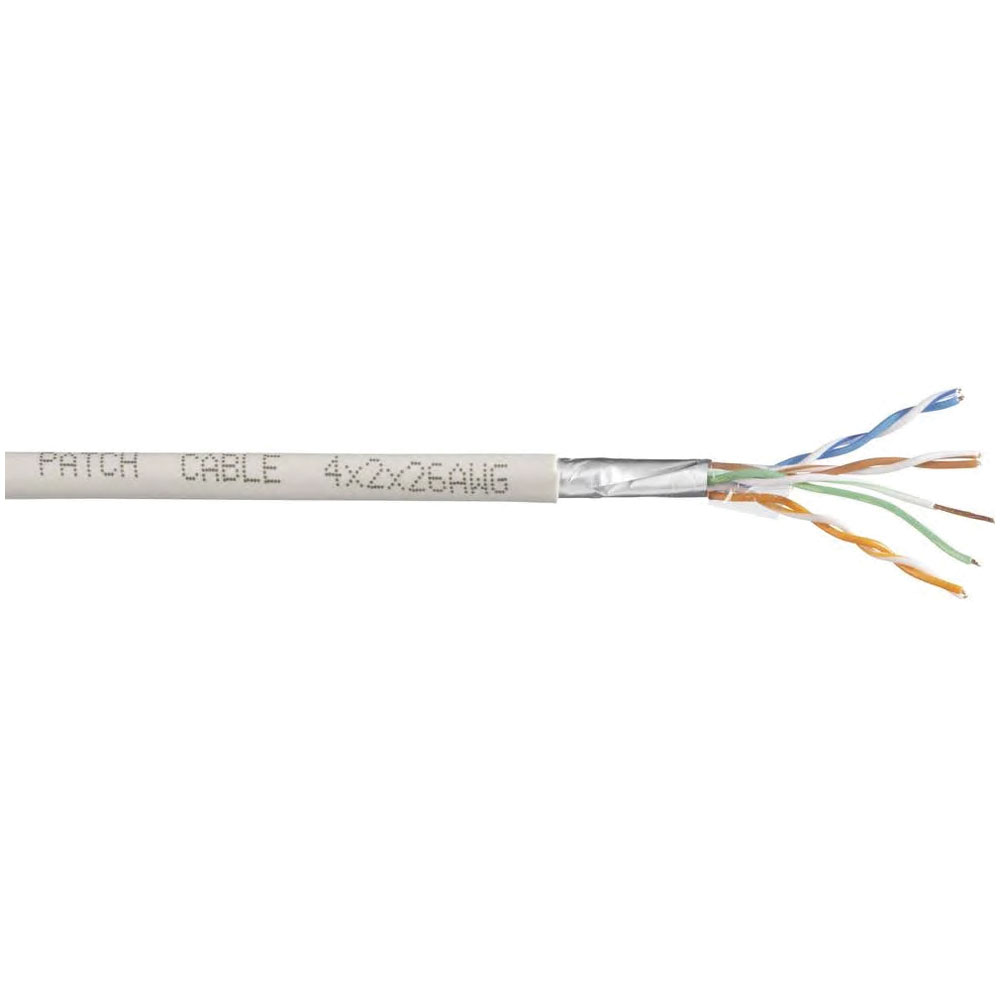

CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
The inner cross-section area of a conductor through which high-frequency alternating current is flowing practically does not do any transmission function.
The
network cable - CCA is thus a really economical and
weight-reduced alternative to the conventional full-copper line and this at
equivalent power and transmission characteristcs.
| Type |
Network Cable |
| AWG max. |
23 |
| Cross section |
4 x 2 x 0.27 mm² |
| Cross section (each core) |
0.27mm² |
| Factory colour |
White |
| Halogen-free |
No |
| Insulation material |
PVC |
| Manufacturer part # |
1572270 |
| Max. frequency |
250MHz |
| Max. temperature range (fixed installation) |
+70°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-20°C |
| Min. temperature range (flexible installation) |
-20°C |
| Misc Attribute |
CAT 6/CCA |
| No. of leads |
8 |
| Outside Ø |
6.50mm |
| Packaged |
Yes |
| Shielding |
SF/UTP |
| Sold per metre |
No |
| Specification |
CAT 6 |
| Twisted pair cabling (part 1) |
Yes (1) |
