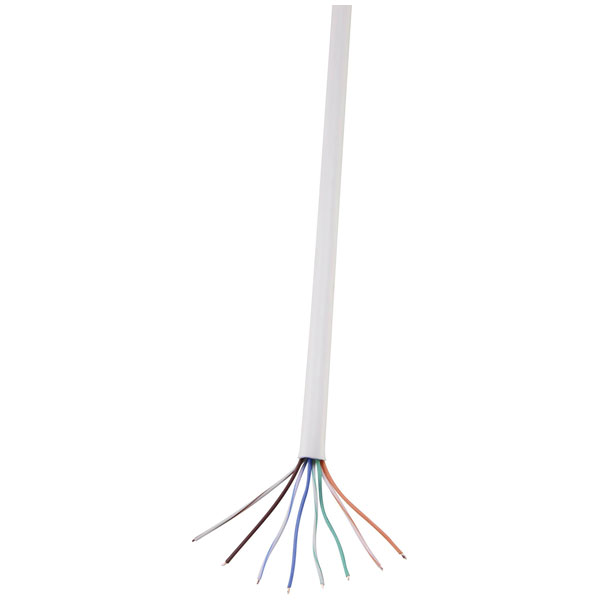

TruComponents 523137 Network cable CAT 5e SF/UTP 4x2x0.14mm² Wh 50m

CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas. Specification explanation: The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases. The inner cross-section area of a conductor through which high-frequency alternating current is flowing practically does not do any transmission function. The network cable - CCA is thus a really economical and weight-reduced alternative to the conventional full-copper line and this at equivalent power and transmission characteristcs.

Colour	White
Length	50m
LAN Category	CAT 5e
Shielding	SF/UTP
AWG	26
Cable Diameter	5.80mm
Conductor Cross-section	0.14mm²
Halogen-free	No
Insulation Material	PVC
Max. temperature range (flexible installation)	+70°C
Min. temperature range (fixed installation)	-20°C
Min. temperature range (flexible installation)	-20°C
Misc Attribute	CAT 5e/CCA
Number of Cores	8
Packaged	Yes
Sold by Metre	No
Twisted pair cabling (part 1)	Yes (1)
Type	Network Cable
