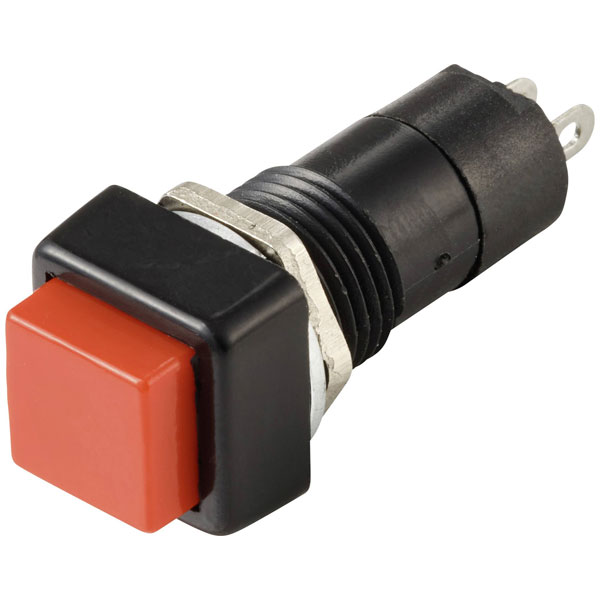

TRU COMPONENTS TC-13599552 Pushbutton Sw 250V 3A 1xOff/On latch 14.5x14.5x39mm

TRU COMPONENTS TC-13599552 is a pushbutton switch that offers durable performance for a variety of applications requiring reliable on/off control. This switch operates at a rated voltage of 250 V AC and a current of 3 A, featuring a single off/on latching mechanism for secure operation. The compact design, with dimensions of 14.5 mm by 14.5 mm by 39 mm, makes it suitable for installations where space is limited. Its robust construction ensures consistent performance in industrial control systems, household appliances, and automotive electrical units, where maintaining precise control over electrical circuits is crucial. Designed to meet the stringent demands of engineering projects, it provides a dependable solution in environments necessitating minimal switch operation error.

Type	TC-13599552
Button diameter	10mm
Connection	Solder pins
Contact Material	Cu-alloy, nickel plated
Contact Resistance	<20mΩ
Contact Type	1 maker
Content	1
Dimensions	(L x W x H) 14.5 x 14.5 x 39 mm
Durability	10,000 cycles
Electrical lifespan	10,000 cycles
Front panel cut-out	11.5 x 11.5mm
Functions	latch
Height	39mm
Insulation Resistance	100mΩ
Length	14.5mm
Material	Thermoplastic
Max. temperature	80°C
Min. temperature	-10°C
Product Type	Pushbutton switch
Resistance	100mΩ
Switch position	1 x Off/On
Switch/button features	Protruding
Switching current (max.)	3A
Switching Voltage	250V AC
Width	14.5mm
