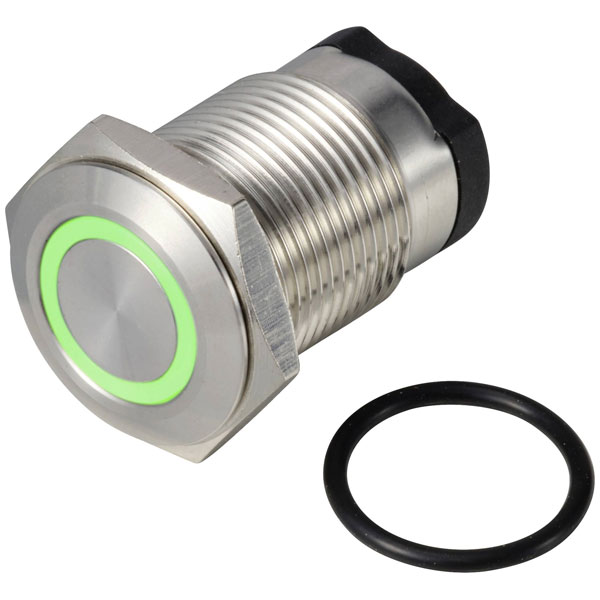

TRU COMPONENTS TC-13224168 Pushbutton Switch Green IP65 36V 2A Latching

TRU COMPONENTS TC-13224168 is a robust push-button switch designed for demanding environments, distinguished by its IP65 rating, which ensures resistance to dust and low-pressure water jets. Featuring a latching mechanism, this switch is ideal for applications requiring a reliable on/off latch that maintains its state until manually reset. It operates at a nominal voltage of 36 V DC/AC with a maximum current rating of 2 A, making it well-suited for low to medium power control systems. The switch is designed with a green actuator for clear status indication and is typically utilised in industrial automation, control panels, and equipment dashboards where durability and reliability are paramount. Its compatibility with the ONPOW6316F-10ZE/Q/G/12V/S standards ensures easy integration into existing systems.

Type	ONPOW6316F-10ZE/Q/G/12V/S
Contact Configuration	SPST
Switch Function	On/Off
Mounting	Panel
Illumination	Green
Panel Cutout Dimensions	16.2
Bulb Type	LED (monochrome)
Colour	Green
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	latch
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
