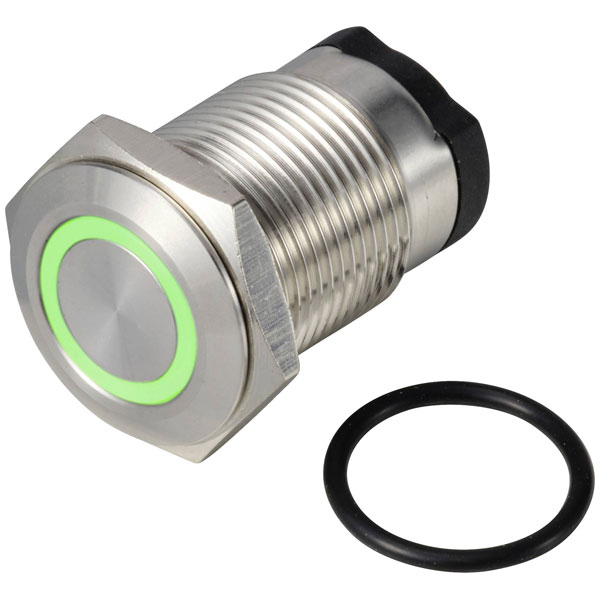

TRU COMPONENTS TC-13224148 Pushbutton Switch Green IP65 36V DC/AC 2A Momentary

TRU COMPONENTS TC-13224148, also known as ONPOW6316F-10E/Q/G/12V/S, is a green momentary push-button switch designed for efficient control in various low-voltage systems. This switch operates at 36 V DC/AC with a maximum current rating of 2 A, making it suitable for a range of applications involving intermittent or temporary operations. Engineered to meet IP65 protection standards, this switch is well-suited for environments requiring dust-tight and water-resistant components. The momentary action (1 x Off/(On)) ensures effective use in circuits that require brief contact engagement. Ideal for industrial control panels, automotive systems, or any application necessitating reliable, momentary switching, the TC-13224148 provides durability and precise performance in demanding settings.

Type	ONPOW6316F-10E/Q/G/12V/S
Contact Configuration	SPNO
Switch Function	1 breaker
Mounting	Panel
Illumination	Green
Panel Cutout Dimensions	16.2
Bulb Type	LED (monochrome)
Colour	Green
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	Circular lighting
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	16mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
