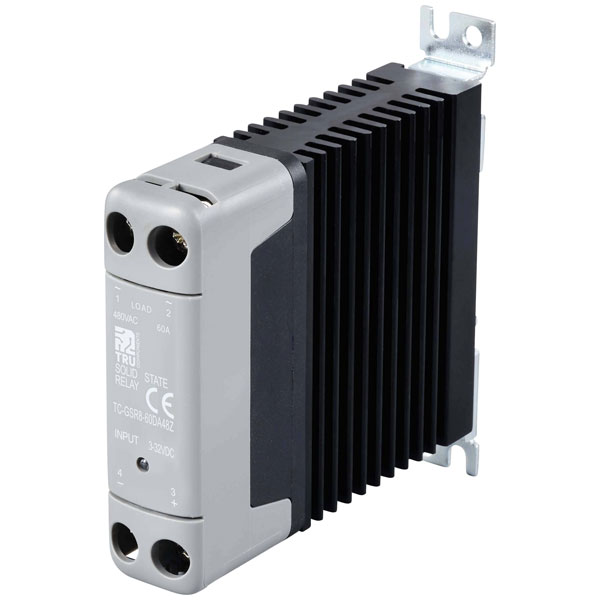

TRU COMPONENTS TC-12705392 Solid State Relay 60A 480VAC Zero crossing

TRU COMPONENTS TC-12705392 is a solid state relay designed for high-performance applications requiring efficient and reliable electronic switching. This SSR features a zero crossing operation, optimising it for reducing electrical noise and enhancing longevity in industrial settings. With a maximum switching current of 60 A and capability to handle a switching voltage of up to 480 V AC, the TC-12705392 is suitable for controlling large AC loads. Its application ranges from heating control and motor drives to lighting systems, providing precise and silent operation. The solid state design ensures durability and minimal maintenance, making it an ideal choice for demanding environments where mechanical relays may not withstand rigorous use.

Type	TC-GSR8-60DA48Z
Contact Configuration	1NO
Switching Current	60A
Length	103mm
Width	22.5mm
Height	100mm
Connection	Screw terminal
Content	1
Control Current (max.)	20mA
Control voltage (max.)	32V DC
Control voltage (min.)	3V DC
Control voltage range	3 - 32 V DC
Max. output current	60A
Max. temperature	80°C
Min. temperature	-30°C
Product Type	SSR
Switching type	Zero crossing
Switching voltage (max.)	480V AC
Switching voltage (min.)	24V AC
Weight	280g
