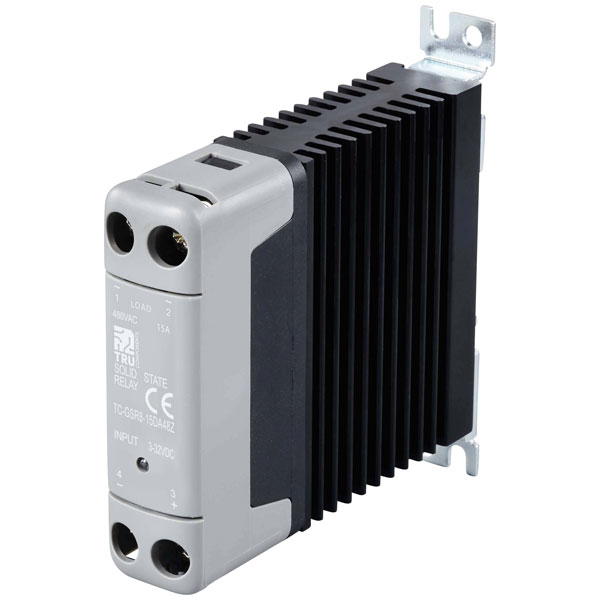

TRU COMPONENTS TC-12705380 Solid State Relay 15A 480V AC Zero crossing

TRU COMPONENTS TC-12705380 is a robust solid state relay designed for efficiently controlling high voltage loads. With a maximum switching current of 15 A and a switching voltage capacity of up to 480 V AC, this device employs zero crossing technology to mitigate electrical noise and enhance performance in high-demand environments. The solid state design of this electronic relay offers enhanced durability and operational life by eliminating mechanical wear present in traditional relays, making it suitable for applications such as industrial automation, temperature control systems, and motor control units. The semiconductor switch is engineered to provide reliable performance in settings where precise control and reduced electromagnetic interference are critical. This product is particularly beneficial in scenarios where silent, rapid switching is required, ensuring that operational demands are met with minimal downtime.

Type	TC-GSR8-15DA48Z
Length	103mm
Width	22.5mm
Height	100mm
Connection	Screw terminal
Contact Type	1 maker
Content	1
Control current (max.)	20mA
Control voltage (max.)	32V DC
Control voltage (min.)	3V DC
Control voltage range	3 - 32 V DC
Current load (max.)	15A
Max. output current	15A
Max. temperature	80°C
Min. temperature	-30°C
Product Type	SSR
Switching type	Zero crossing
Switching voltage (max.)	480V AC
Switching voltage (min.)	24V AC
Weight	280g
