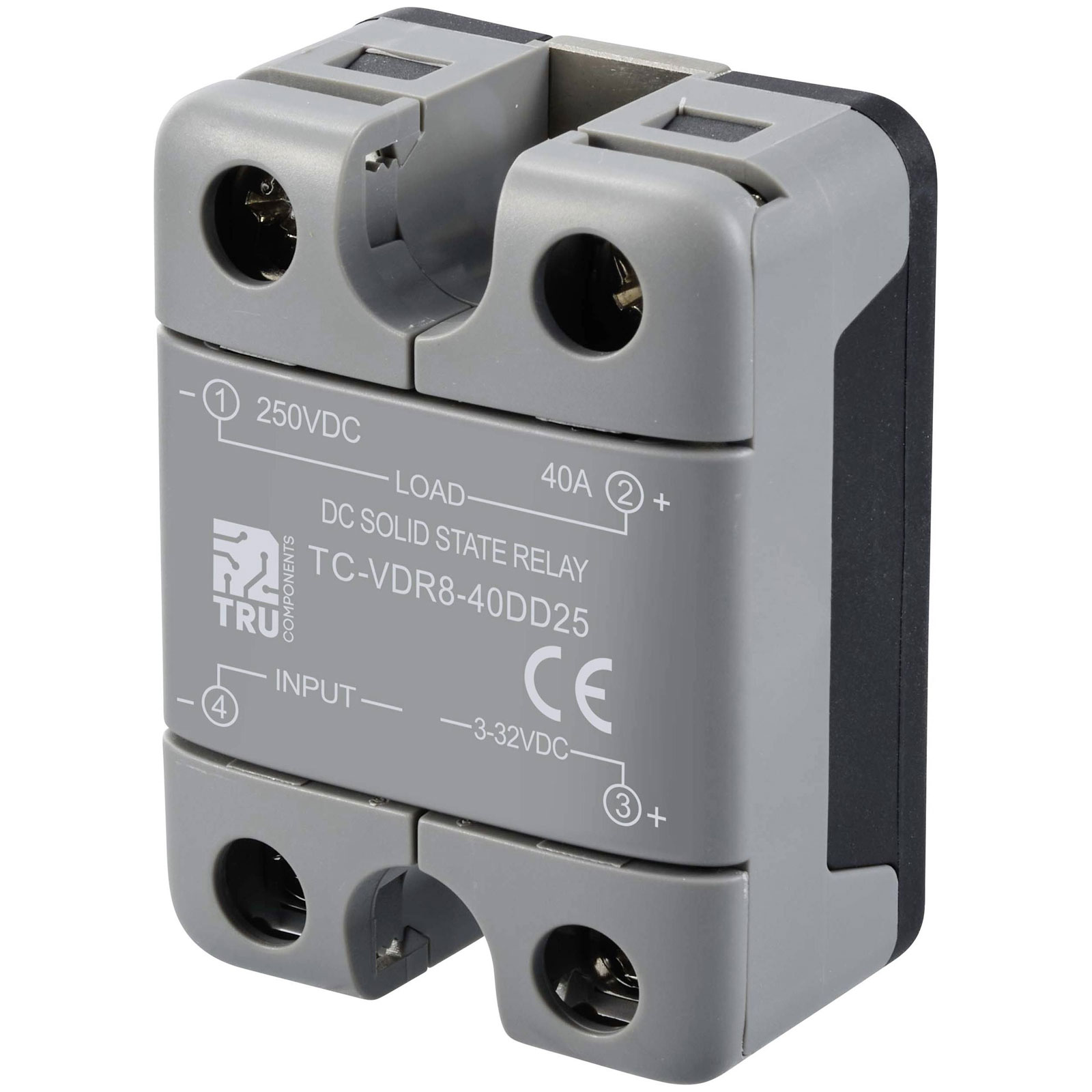

TRU COMPONENTS TC-12705372 Solid State Relay 40A 250V DC 1 unit

TRU COMPONENTS TC-12705372 is a robust solid state relay engineered for applications requiring precise control of high electrical loads. This semiconductor switch features a maximum switching current of 40 A and can handle a switching voltage of up to 250 V DC, making it suitable for various demanding industrial environments. As a zero crossing switch, the TC-12705372 significantly reduces electrical noise during the switching process, thereby enhancing operational efficiency and extending the lifespan of connected equipment. This solid state relay is optimised for electronic relay applications, including motor controls, lighting systems, and other automated systems requiring high reliability and low maintenance. The design ensures seamless integration into DC circuits where dependable performance and minimal mechanical wear are essential.

Type	TC-VDR8-40DD25
Length	59.4mm
Width	44.5mm
Height	29.1mm
Connection	Screw terminal
Contact Type	1 maker
Content	1
Control current (max.)	30mA
Control voltage (max.)	32V DC
Control voltage (min.)	3V DC
Control voltage range	3 - 32 V DC
Current load (max.)	40A
Max. output current	40A
Max. temperature	80°C
Min. temperature	-30°C
Product Type	SSR
Switching type	DC circuit
Switching voltage (max.)	250V DC
Switching voltage (min.)	12V DC
Weight	120g
