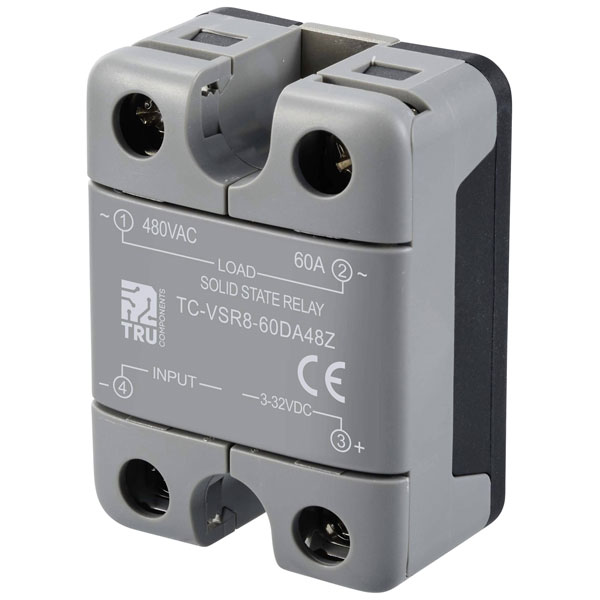

TRU COMPONENTS TC-12705364 Solid State Relay 60A 480V AC Zero crossing

TRU COMPONENTS, with its part number TC-12705364, offers a robust solid state relay designed for effective electronic switching applications. This device, also referred to as the TC-VSR8-60DA48Z, is capable of handling up to 60 A of current and operates at a maximum switching voltage of 480 V AC. Utilising zero crossing technology, the solid state relay minimises electrical noise, making it particularly advantageous in applications requiring precise control and reduced electromagnetic interference. Common uses include industrial automation systems, temperature control equipment, and motor drives, where reliable and wear-free semiconductor switching is essential. The solid state relay's capacity to switch without mechanical contacts enhances its durability and operational lifespan, making it a favourable choice in both commercial and industrial settings.

Type	TC-VSR8-60DA48Z
Length	59.3mm
Width	44.5mm
Height	27.3mm
Connection	Screw terminal
Contact Type	1 maker
Content	1
Control current (max.)	20mA
Control voltage (max.)	32V DC
Control voltage (min.)	3V DC
Control voltage range	3 - 32 V DC
Current load (max.)	60A
Max. output current	60A
Max. temperature	80°C
Min. temperature	-30°C
Product Type	SSR
Switching type	Zero crossing
Switching voltage (max.)	480V AC
Switching voltage (min.)	24V AC
Weight	145g
