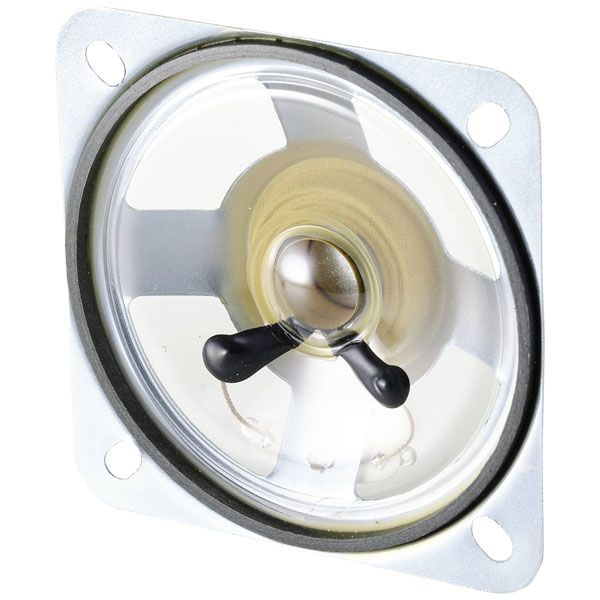

TRU COMPONENTS TC-10089016 Mini speaker 7.7 cm 1 W 8 Ω 91 dB Plastic diaphragm

TRU COMPONENTS TC-10089016 is a mini speaker engineered to deliver precise audio output with a diameter of 7.7 cm and a power rating of 1 W. The speaker features an 8-ohm impedance and boasts a sensitivity of 91 dB, ensuring efficient sound reproduction. Its plastic diaphragm contributes to enhanced durability and performance, making it suitable for various audio applications where space is constrained. The transparent diaphragm allows for visual inspections for mechanical integration, which is advantageous in compact electronic devices, educational kits, or personal audio projects that require reliable and clear sound output. Designed for efficiency, this speaker is ideal for engineers and designers focusing on compact and portable sound solutions.

Type	Round
Impedance	8Ω
Power - Rated	1W
Connection	Solder lug
Frequency Range	320 Hz - 7000 Hz
Height	20mm
Length	77mm
Max. frequency	7000Hz
Max. load	2W
Min. frequency	320Hz
Product Type	Mini speaker
Recess depth	20mm
Recess diameter	77mm
Resonance	320Hz
Sound pressure	91dB
Speaker size (cm)	7.7cm
Speaker size (inch)	3.03in
Width	77mm
