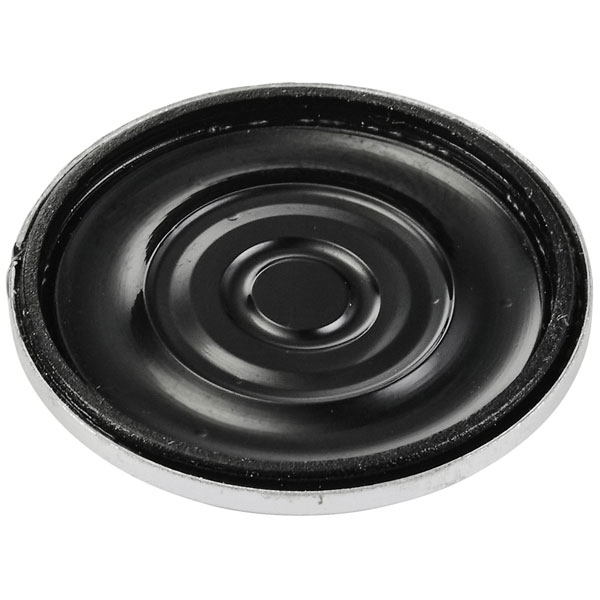

TRU COMPONENTS P20M08-10-R Mini speaker 0.79 inch 0.5 W 8 Ω 2 cm

TRU Components P20M08-10-R is a compact mini speaker with a diameter of 0.79 inches (2 cm), designed to deliver a maximum power output of 0.5 watts at an impedance of 8 ohms. This miniature speaker, also recognised by its alternative description TRU COMPONENTS TC-10089004, is suitable for use in compact electronic applications where space is limited. Commonly employed in consumer electronics, handheld devices, and embedded systems, its small form factor does not compromise on sound delivery in personal audio devices. The speaker's specifications make it particularly ideal for integration into custom projects or OEM designs where efficient audio output is required without consuming significant space.

Type	Round
Impedance	8Ω
Power - Rated	0.5W
Connection	Solder lug
Frequency Range	1250 Hz - 20000 Hz
Height	3.8mm
Max. frequency	20000Hz
Max. load	1W
Min. frequency	1250Hz
Product Type	Mini speaker
Recess depth	3.8mm
Recess diameter	20mm
Resonance	1250Hz
Size	20mm
Sound pressure	87dB
Speaker size (cm)	2cm
Speaker size (inch)	0.79in
