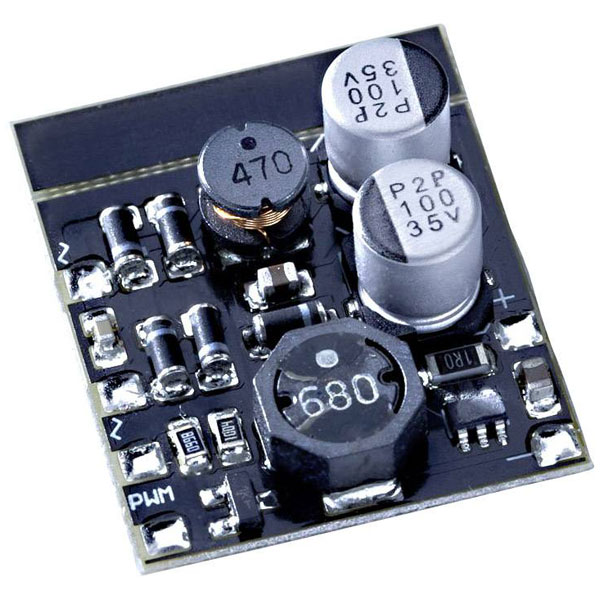

TRU COMPONENTS 1582420 LED driver Constant current 22.8W 700mA 32V 35V Max

TruComponents 1582420 is a constant current LED driver, designed to deliver reliable performance in lighting applications. Operating with an output power of 22.8 watts, this driver provides a constant current of 700 mA and is engineered to support LED systems requiring a voltage range between 32 volts and 35 volts. Its robust design ensures consistent power delivery, making it ideal for use in commercial, industrial, and architectural lighting installations. With its efficient energy management and thermal regulation capabilities, the 1582420 LED driver is suitable for engineers prioritising energy efficiency and system stability in high-performance lighting projects.

Type	TRU-ksq-700 mA
Connection	Solder pad
Dimensions	(L x W x H) 23 x 23 x 7 mm
Height	7mm
Length	23mm
Max. operating voltage	35V
Max. output current	700mA
Max. temperature	60°C
Min. operating voltage	6V
Min. temperature	-40°C
No. of LEDs (max.)	10
Operating Voltage	6 - 35 V
Output current (max.) - rounded	700mA
Output voltage (max.)	32V
Output voltage (min.)	4V
Power	22.8W
Product Type	Constant current LED driver
Width	23mm
