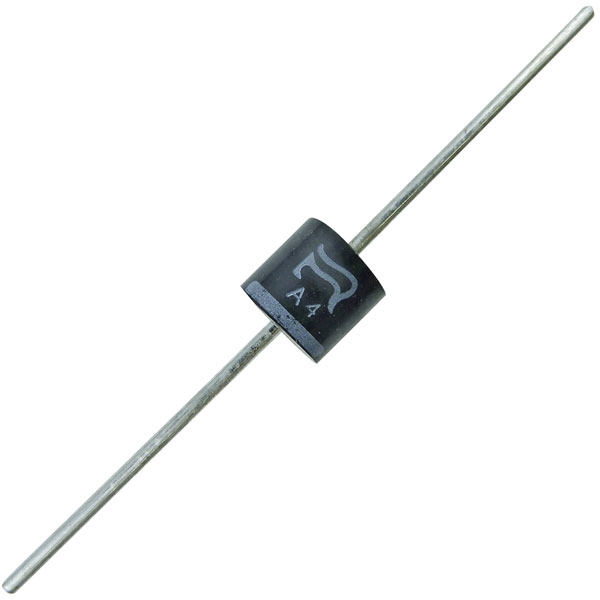

TRU COMPONENTS 1582139 TC-SBX3040 Schottky rectifier 40V P600 Schottky diode

TRU COMPONENTS 1582139 TC-SBX3040 is a Schottky diode specifically designed for rectification applications. This component features a maximum reverse voltage of 40 volts and employs a P600 package, which is known for providing enhanced heat dissipation, making it suitable for high-efficiency applications. With its low forward voltage drop, the diode minimises energy loss, making it ideal for use as a blocking diode in power management circuits, switching power supplies, and photovoltaic systems. The Schottky diode's PN junction design ensures rapid switching and low-noise operation, characteristics that are particularly beneficial in high-frequency applications. It serves as a reliable choice for engineers seeking efficient rectification solutions in both industrial and consumer electronics.

Type	TC-SBX3040
Configuration (diode)	Single
Content	1
Enclosure	P600
Forward current I(F)	30A
Forward voltage reference	30A
Forward Voltage U(F)	550mV
Mounting Type	Through-hole
Operating temperature (max.)	+150°C
Operating temperature (min.)	-50°C
Peak forward surge Current I(FSM)	290A
Product Type	Schottky rectifier
Reverse leakage Current I(r)	500µA
Reverse leakage current I(r) reference	40V
Reverse Voltage U(R)	40V
