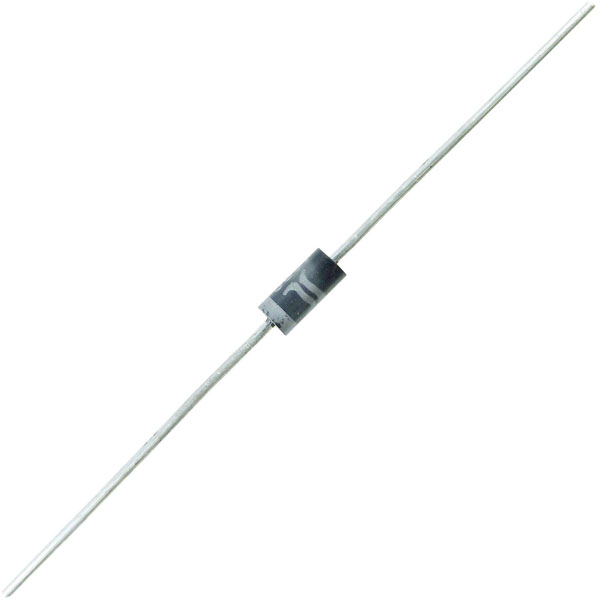

TRU COMPONENTS 1582126 TRU COMPONENTS Schottky rectifier 50V Single Diode

TRU COMPONENTS 1582126 is a Schottky rectifier diode, known by its alternate description as the TC-SB150 DO 15 50 V Single. This diode features a 50-volt maximum reverse voltage and is constructed with a Schottky barrier, which provides a low forward voltage drop and fast switching capabilities, reducing power loss and increasing efficiency. Its single diode configuration makes it well-suited for applications requiring low voltage rectification and blocking, such as power supplies, solar panel installations, and low-frequency inverters. The use of a Schottky barrier, rather than a traditional p-n junction, allows it to operate with higher speed and lower current leakage, essential attributes in engineering designs where power efficiency and rapid response are critical.

Type	TC-SB150
Configuration (diode)	Single
Content	1
Enclosure	DO 15
Forward current I(F)	1A
Forward voltage reference	1A
Forward Voltage U(F)	700mV
Maximum Operating Temperature	+150°C
Mounting Type	Through-hole
Operating temperature (min.)	-50°C
Peak forward surge Current I(FSM)	40A
Product Type	Schottky rectifier
Reverse leakage Current I(r)	500µA
Reverse leakage current I(r) reference	50V
Reverse Voltage U(R)	50V
