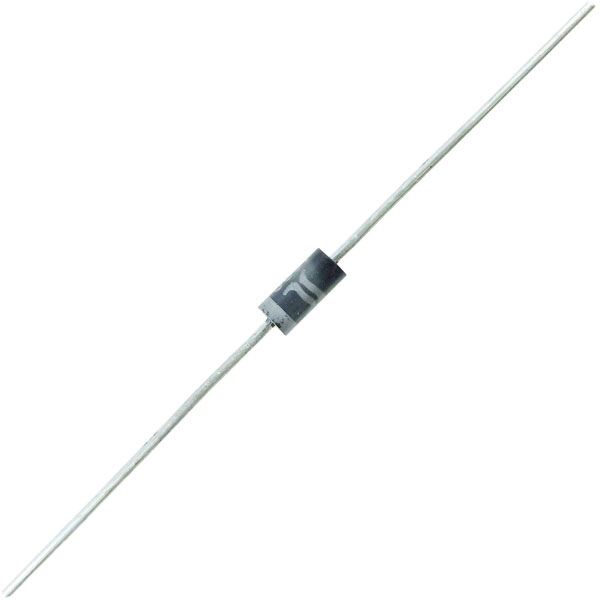

TRU COMPONENTS 1582122 Schottky rectifier 20 V Single Schottky Diodes

TRU COMPONENTS 1582122 is a high-quality Schottky rectifier designed under the model name TC-SB120, and it is encapsulated in a DO-15 package. This single Schottky diode offers a reverse voltage rating of 20 V, making it suitable for low-voltage rectification applications. Known for its fast switching capabilities and low forward voltage drop, this diode utilises a metal-semiconductor 'p-n junction', which contributes to its efficiency in power conservation. Typical engineering applications include use as a blocking diode in power supplies, voltage clamping in protection circuits, and rectification in AC/DC converters. The diode's efficient performance and reliability are ideal for engineers seeking to optimise circuit designs requiring swift current flow with minimal power loss.

Type	TC-SB120
Configuration (diode)	Single
Content	1
Enclosure	DO 15
Forward current I(F)	1A
Forward voltage reference	1A
Forward Voltage U(F)	500mV
Maximum Operating Temperature	+150°C
Mounting Type	Through-hole
Operating temperature (min.)	-50°C
Peak forward surge Current I(FSM)	40A
Product Type	Schottky rectifier
Reverse leakage Current I(r)	500µA
Reverse leakage current I(r) reference	20V
Reverse Voltage U(R)	20V
