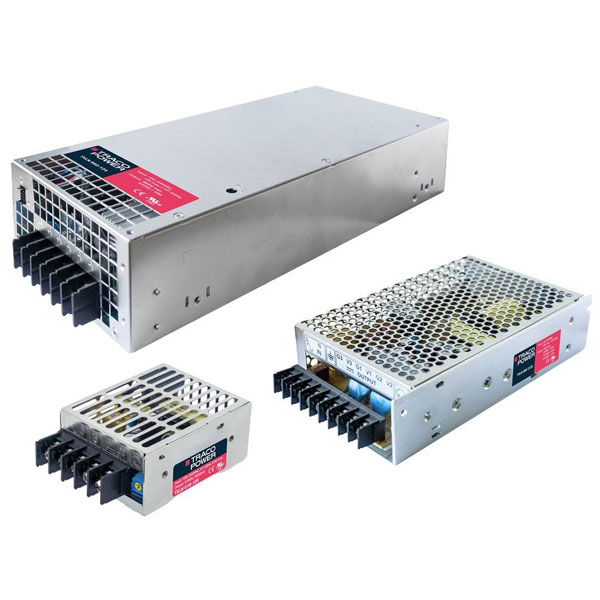

TracoPower TXLN 035-105 AC/DC PSU Module 5V 7A 35W With Enclosure

TracoPower
Standard range
Order Code:

07-8435

Brand: TracoPower MPN: TXLN 035-105
Qty Unit Price (Ex VAT)
1+ £34.03
5+ £33.01
10+ £31.99
25+ £30.63
50+ £29.27
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The TracoPower TXLN 035-105 is a compact AC/DC PSU module with an enclosure, providing 5 V DC output at 7 A with a total power of 35 W. It is suitable for printed circuit board mount applications, equipped with solder lugs for easy installation. This power supply unit is typically used in industrial and consumer electronics where reliable power conversion is necessary.
Type AC/DC PSU module (+ enclosure)
Connection Screw terminal
Dim (L x W x H) 110.8 x 82.0 x 28.0 mm
Height 28.0mm
Input voltage (max.) 264V AC
Length 110.8mm
Max. operating temperature (derating) 50°C
Max. output current 7A
Min. input voltage 88V AC
Misc Attribute 1 TXLN 035-105
Misc Attribute 2 closed
MTBF 400000h
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 7A
Output current (min.) 0mA
Output voltage (max.) 5V DC
Output voltage (min.) 5V DC
PFC No
Power 35W
Weight 340g
Width 82.0mm
