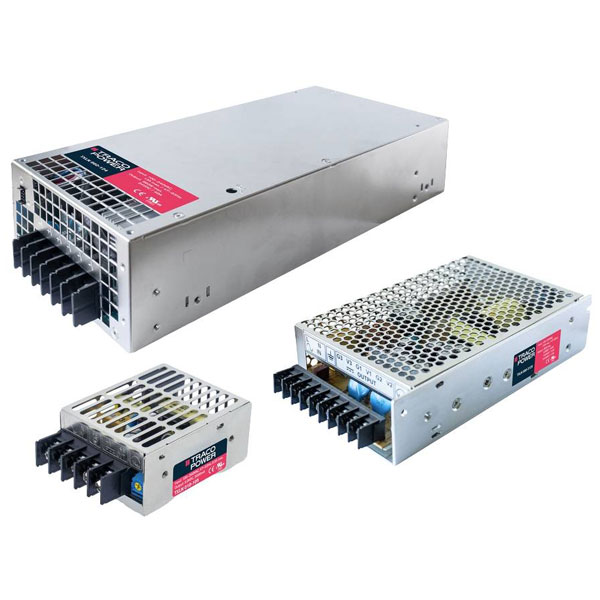

TracoPower TXLN 025-105 PSU Module AC/DC 5V 5A 25W with Enclosure

TracoPower
Standard range
Order Code:

07-8432

Brand: TracoPower MPN: TXLN 025-105
Qty Unit Price (Ex VAT)
1+ £25.11
5+ £24.36
10+ £23.61
25+ £22.60
50+ £21.59
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The TracoPower TXLN 025-105 is a 25 W AC/DC power supply module with a 5 V DC output at 5 A, housed in an enclosed PCB mount design. This unit features solder lugs for secure connections, making it ideal for various industrial and electronic applications. It is commonly used in devices requiring reliable power conversion on a printed circuit board.
Type AC/DC PSU module (+ enclosure)
Connection Screw terminal
Dim (L x W x H) 91.9 x 50.8 x 28.0 mm
Height 28.0mm
Input voltage (max.) 264V AC
Length 91.9mm
Max. operating temperature (derating) 50°C
Max. output current 5A
Min. input voltage 88V AC
Misc Attribute 1 TXLN 025-105
Misc Attribute 2 closed
MTBF 450000h
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 5A
Output current (min.) 0mA
Output voltage (max.) 5V DC
Output voltage (min.) 5V DC
PFC No
Power 25W
Weight 180g
Width 50.8mm
