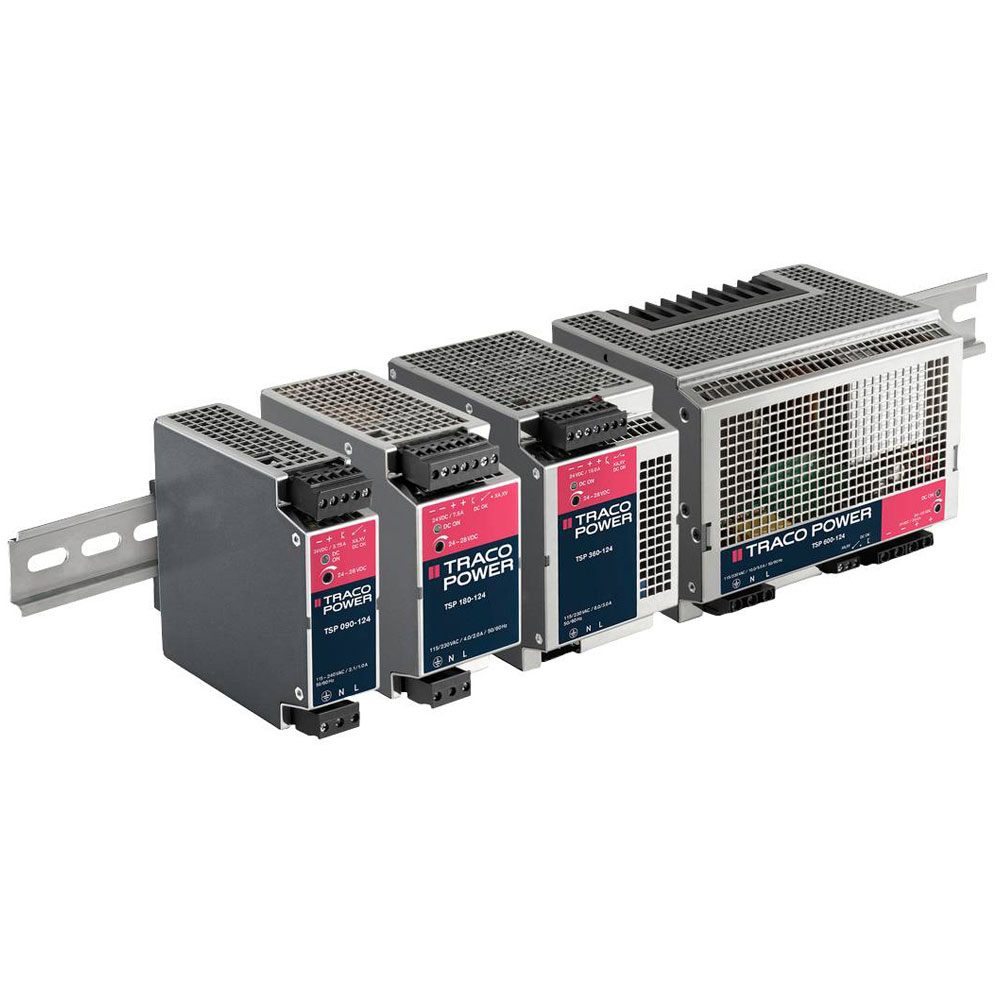

TracoPower TSP 360-148 DIN Rail PSU 360W 7500mA 1 Output 1pc

TracoPower
Standard range
Order Code:

07-8386

Brand: TracoPower MPN: TSP 360-148
Qty Unit Price (Ex VAT)
1+ £236.58
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The TracoPower TSP 360-148 is a rail mounted PSU (DIN) providing 360 W of power with a single output of 7500 mA, ideal for industrial power supply applications. As a reliable power supply module for rail mounting, it offers robust performance in demanding environments. This unit is suitable for supplying power to industrial equipment and automation systems.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 130.0 x 80.0 x 125.0 mm
Height 125.0mm
Input voltage (max.) 264V AC
Length 130.0mm
Manufacturer part # TSP 360-148
Max. output current 7500mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 40°C
Min. temperature -25°C
Misc Attribute TSP 360-148
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 7.5A
Output voltage (max.) +56.0V DC
Output voltage (min.) +48.0V DC
Power 360W
Weight 1100g
Width 80.0mm
