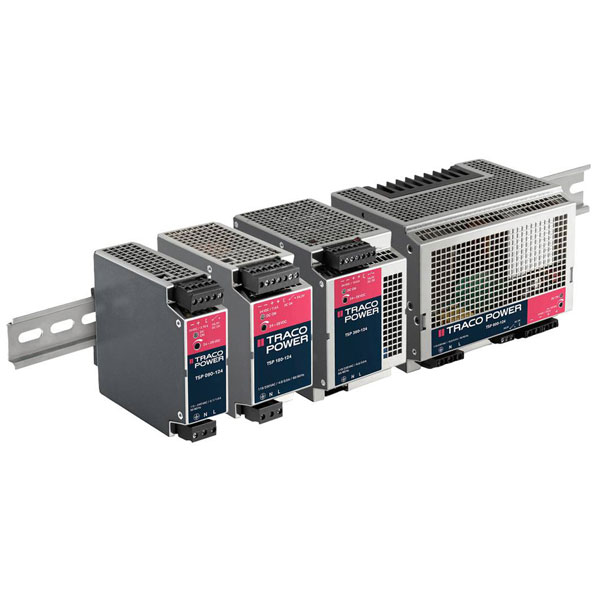

TracoPower TSP 090-148 EX Rail PSU 2000mA 96W DIN Rail Single Output

TracoPower
Order Code:

07-8382

Brand: TracoPower MPN: TSP 090-148 EX
Qty Unit Price (Ex VAT)
1+ £112.74
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 02/02/2026

The TracoPower TSP 090-148 EX is a rail mounted PSU (DIN) designed for industrial applications, providing a single output with 2000 mA and 96 W of power. This versatile DIN rail power supply unit is ideal for use in complex systems requiring reliable and efficient power in a compact form. It is suitable for various industrial power supply needs, offering robust performance in demanding environments.
Type Rail mounted PSU (DIN)
Output Voltage +48.0V DC
Output Current 2A
Number of Outputs 1
Power Rating 96W
Connection Screw terminal
Dim (L x W x H) 115.0 x 35.0 x 110.0 mm
Height 110.0mm
Input voltage (max.) 264V AC
Length 115.0mm
Max. output current 2000mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 40°C
Min. temperature -25°C
Operating temperature (max.) 70°C
Operating temperature (min.) -25°C
Width 35.0mm
