TracoPower TPP 150-115A-J SMPSU 16.5V 10A 150W Compact Power Supply

TracoPower
Extended range
Order Code:

07-8322

Brand: TracoPower MPN: TPP 150-115A-J
Qty Unit Price (Ex VAT)
1+ £66.73
5+ £66.36
10+ £62.20
25+ £60.53
50+ £59.28
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

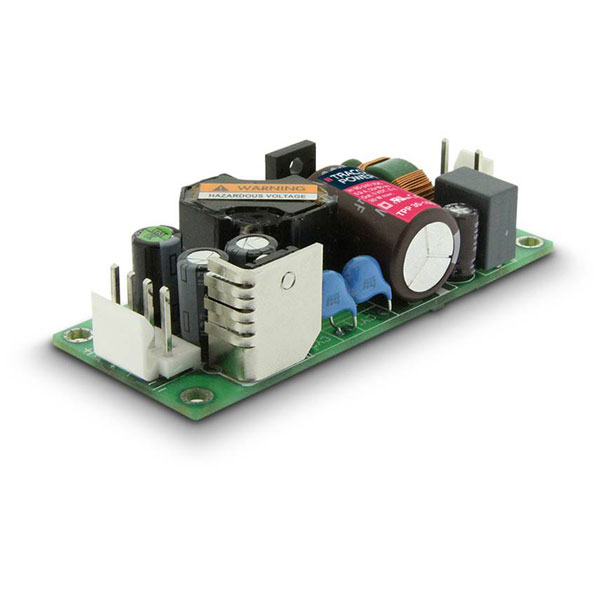

The TracoPower TPP 150-115A-J is a 150 W switch-mode power supply unit that delivers 16.5 V DC at 10,000 mA. It is designed for PCB mounting and is equipped with solder lugs for easy installation. This SMPSU is ideal for applications requiring compact and efficient power solutions on printed circuit boards.
Type SMPSU
Connection Connector
Dim (L x W x H) 101.6 x 50.8 x 32.0 mm
Height 32.0mm
Input voltage (max.) 264V AC
Length 101.6mm
Max. output current 10000mA
Max. temperature 85°C
Min. input voltage 85V AC
Min. temperature -25°C
Misc Attribute 1 TPP 150-115A-J
Misc Attribute 2 open
No. of outputs 1
Output current (max.) - rounded 10A
Output current (min.) 0mA
Output voltage (max.) 16.5V DC
Output voltage (min.) 13.5V DC
Power 150W
Weight 187g
Width 50.8mm
