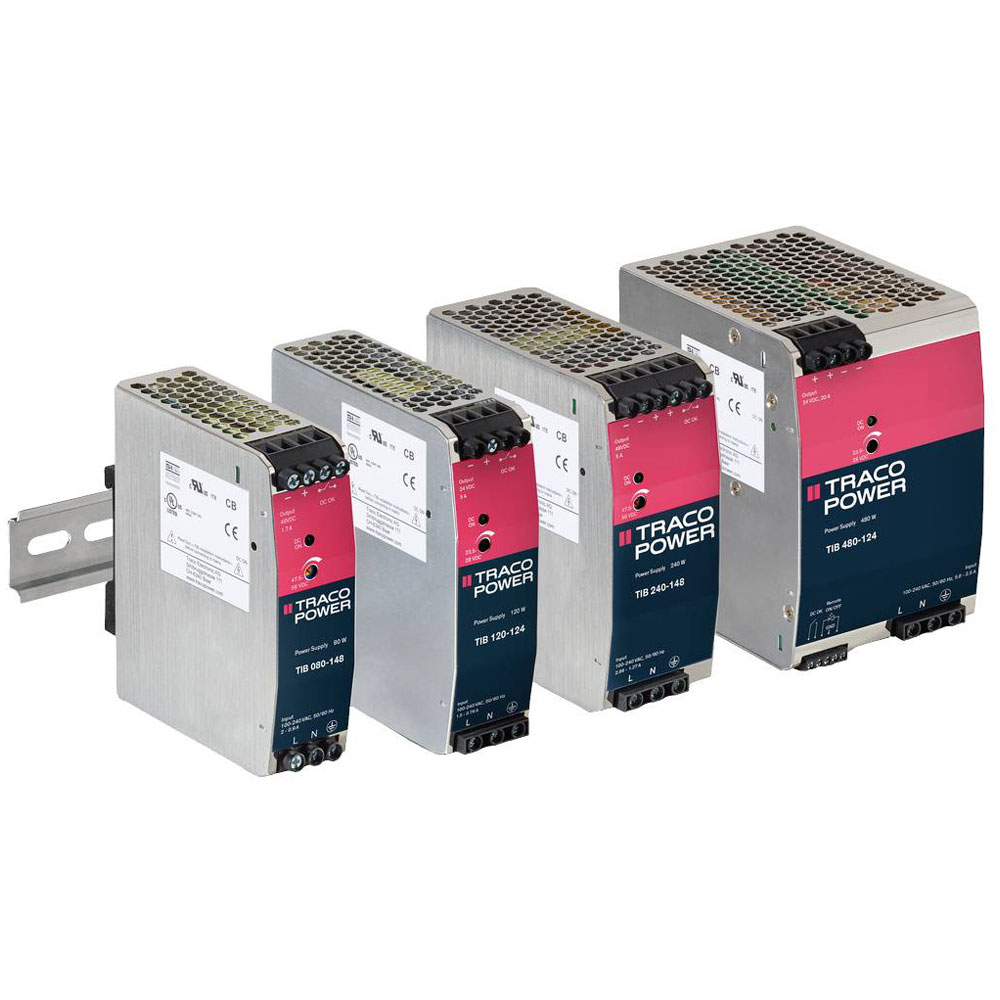

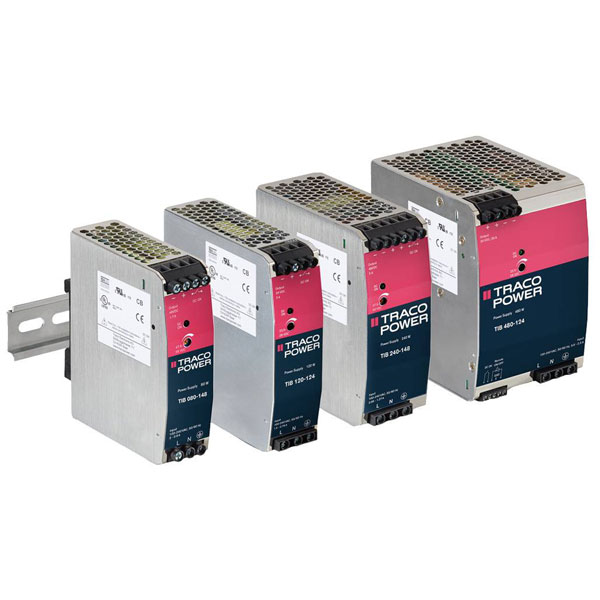

TracoPower TIB 480-148 TIB Series Rail Mounted PSU +48V 10A 480W DIN Rail

TracoPower
Standard range
Order Code:

07-8243

Brand: TracoPower MPN: TIB 480-148
Qty Was Unit Price (Ex VAT)
1+ £206.68   £204.55
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The TracoPower TIB 480-148 is an industrial power supply unit offering a single output of +48.0 V DC at 10,000 mA, with a total power of 480 W. This DIN rail mounted PSU is ideal for use in industrial automation and control systems. Its robust design ensures reliable performance under demanding conditions.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 118.6 x 82.0 x 124.2 mm
Height 124.2mm
Input voltage 100 - 240V AC
Input voltage (max.) 264V AC
Inputs 1 x
Length 118.6mm
Manufacturer part # TIB 480-148
Max. output current 10000mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 55°C
Min. temperature -40°C
Misc Attribute TIB 480-148
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 10A
Output voltage +48.0V DC
Output voltage (max.) +56.0V DC
Output voltage (min.) +47.0V DC
Output voltage (nominal) +48.0V DC
Phases 1
Power 480W
Weight 1018g
Width 82.0mm
