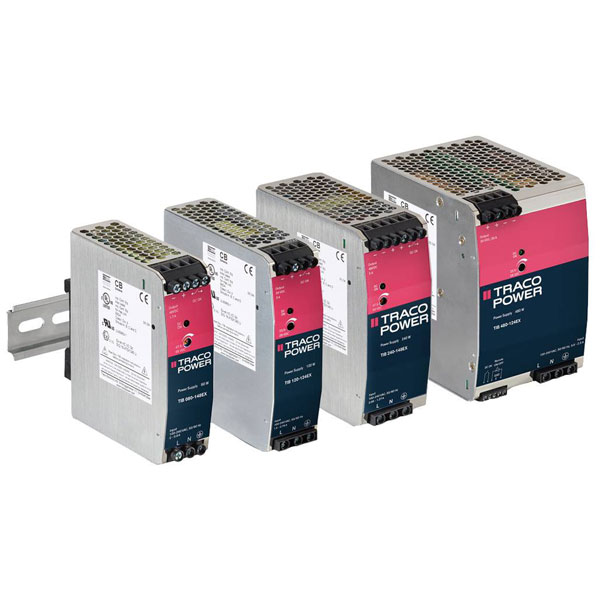

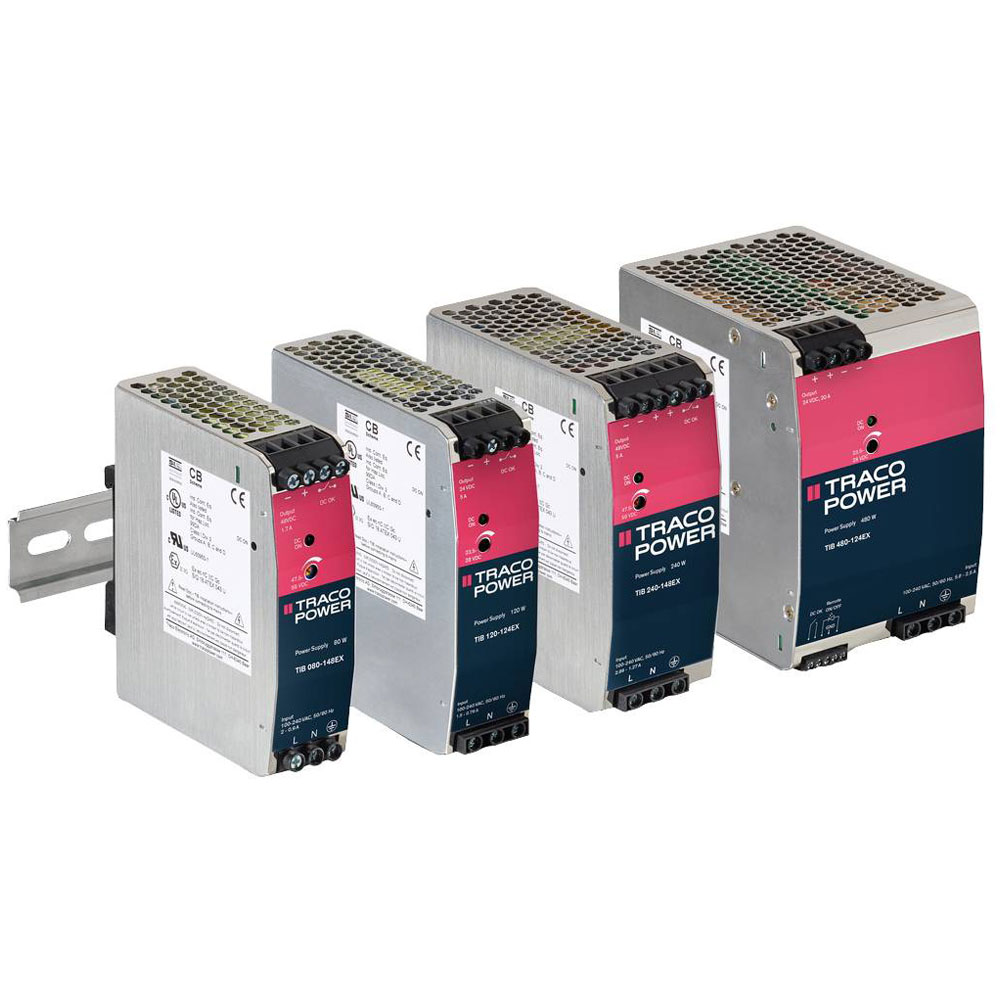

TracoPower TIB 240-124EX PSU 24V 10A 240W Rail Mounted DIN 1 Output

TracoPower
Standard range
Order Code:

07-8238

Brand: TracoPower MPN: TIB 240-124EX
Qty Was Unit Price (Ex VAT)
1+ £144.66   £143.16
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The TracoPower TIB 240-124EX is a rail mounted PSU designed for industrial applications, delivering a 24.0 V DC output at 10,000 mA with a total power of 240 W. Manufactured by TracoPower, it features a single output designed for dependable performance in harsh environments. This DIN rail power supply unit is ideal for integration into industrial control systems and automation equipment.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 118.6 x 48.0 x 124.2 mm
Height 124.2mm
Input voltage 100 - 240V AC
Input voltage (max.) 264V AC
Inputs 1 x
Length 118.6mm
Manufacturer part # TIB 240-124EX
Max. output current 10000mA
Max. temperature 70°C
Min. input voltage 85V AC
Min. operating temperature (derating) 60°C
Min. temperature -40°C
Misc Attribute TIB 240-124EX
No. of outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 10A
Output voltage +24.0V DC
Output voltage (max.) +28.0V DC
Output voltage (min.) +23.5V DC
Output voltage (nominal) +24.0V DC
Phases 1
Power 240W
Weight 643g
Width 48.0mm
